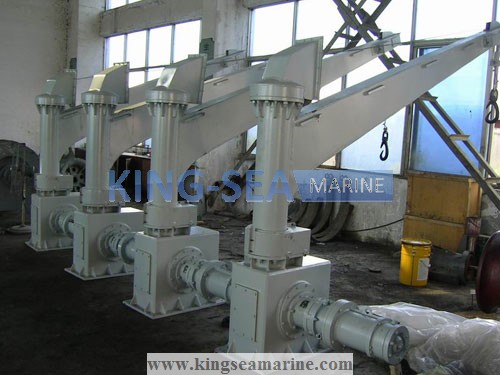

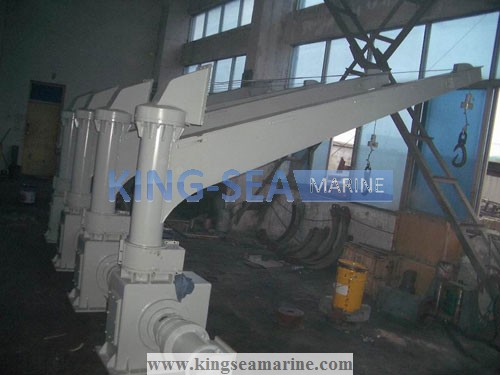

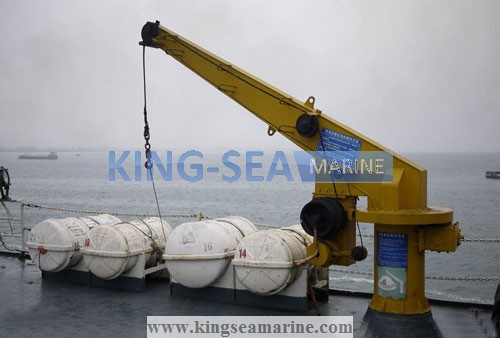

Single Arm Liferaft Davit
- The Single Arm Slewing Davit is a free-standing, deck-mounted davit consisting of a davit arm, column and electric winch
- Manual slewing type and hydraulic slewing type are both available
- Easy to operate
- For the hydraulic slewing type davit, slewing out the fully manned rescue boat from its stowed position into launch position is done by means of the accumulated power obtained from a …
Share this:
Main Details:
- The Single Arm Slewing Davit is a free-standing, deck-mounted davit consisting of a davit arm, column and electric winch
- Manual slewing type and hydraulic slewing type are both available
- Easy to operate
- For the hydraulic slewing type davit, slewing out the fully manned rescue boat from its stowed position into launch position is done by means of the accumulated power obtained from a self-contained hydraulic power pack unit.
- Other sizes/dimensions available on request
Basic specification for inquiry:
- Required lifting capacity
- Outreach – min / max
- Lifting height
- Lifting speed
- Luffing time
- Self-weight of the davit
- Power pack: (hydraulic, electric, or any other)
- Power source
- Required Classification societies
Drawing and Data:
- The Single Arm Slewing Davit is a free-standing, deck-mounted davit consisting of a davit arm, column and electric winch
- Manual slewing type and hydraulic slewing type are both available
- Easy to operate
- For the hydraulic slewing type davit, slewing out the fully manned rescue boat from its stowed position into launch position is done by means of the accumulated power obtained from a self-contained hydraulic power pack unit.
- Other sizes/dimensions available on request
Basic specification for inquiry:
- Required lifting capacity
- Outreach – min / max
- Lifting height
- Lifting speed
- Luffing time
- Self-weight of the davit
- Power pack: (hydraulic, electric, or any other)
- Power source
- Required Classification societies

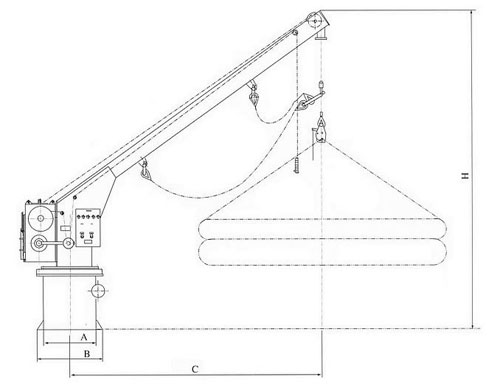

Drawing and Data:
|
Main Technical Specification |
|||||||||
|
Product No. |
S.W.L |
Hoisting Load |
Slewing Load |
Hoisting Speed |
Lowering Speed |
Main Dimensions(mm) |
|||
|
A |
B |
C |
H |
||||||
|
KSM-SDLA-001 |
21 |
14 |
14 |
≥18 |
40-60 |
650 |
850 |
4200 |
4500 |
|
KSM-SDLA-002 |
32 |
14 |
14 |
≥18 |
40-60 |
700 |
900 |
4200 |
4500 |
