Gravity Roller Track Davit (R Type, Overhead H Type)
- The Gravity Roller Track Davit consists of two arms which slide over two guides
- Various possibility of interfacing to ship's structure
- Manual bowsing
- Can be used on open or recessed deck
- Use electrical winches
- Suitable for all types of Life/Rescue boat
- Other sizes/dimensions available on request
Share this:
Main Details:
- The Gravity Roller Track Davit consists of two arms which slide over two guides
- Various possibility of interfacing to ship's structure
- Manual bowsing
- Can be used on open or recessed deck
- Use electrical winches
- Suitable for all types of Life/Rescue boat
- Other sizes/dimensions available on request
Basic specification for inquiry:
- Required lifting capacity
- Outreach – min / max
- Lifting height
- Lifting speed
- Luffing time
- Self-weight of the davit
- Power pack: (hydraulic, electric, or any other)
- Power source
- Required Classification societies
Drawing and Data:
|
Gravity Roller Track Davit (R Type) |
||||||
|
Main Technical Specification |
||||||
|
Product No. |
S.W.L |
Main Dimensions(mm) |
Winch Load(KN) |
|||
|
A |
B |
C |
L |
|||
|
KSM-GDRT-001 |
50 |
1150 |
2200 |
2800 |
4600 |
48 |
|
KSM-GDRT-002 |
60 |
1250 |
2400 |
3000 |
4950 |
63 |
|
KSM-GDRT-003 |
80 |
1525 |
2540 |
3500 |
5250 |
63 |
|
KSM-GDRT-004 |
105 |
1620 |
2890 |
4110 |
6170 |
80 |
|

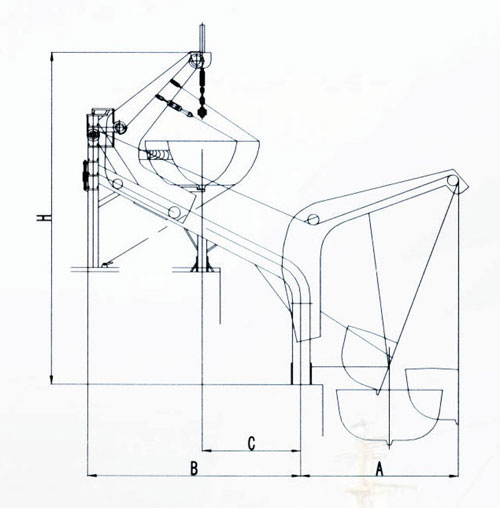

Gravity Overhead Roller Track Davit ( H type) |
|||||
|
Main Technical Specification |
|||||
|
Product No. |
S.W.L |
Main Dimensions(mm) |
|||
|
A |
B |
C |
H |
||
|
KSM-GDRH-001 |
30 |
2035 |
2900 |
1530 |
5420 |
|
KSM-GDRH-002 |
50 |
1850 |
2800 |
1250 |
5000 |
|
KSM-GDRH-003 |
80 |
3450 |
4535 |
2200 |
7950 |
|
KSM-GDRH-004 |
110 |
3200 |
4100 |
1800 |
7810 |
|
KSM-GDRH-005 |
130 |
2700 |
4620 |
1900 |
8180 |
|
KSM-GDRH-006 |
138 |
3450 |
4100 |
2000 |
10060 |
|
KSM-GDRH-007 |
170 |
3520 |
7900 |
2260 |
9820 |

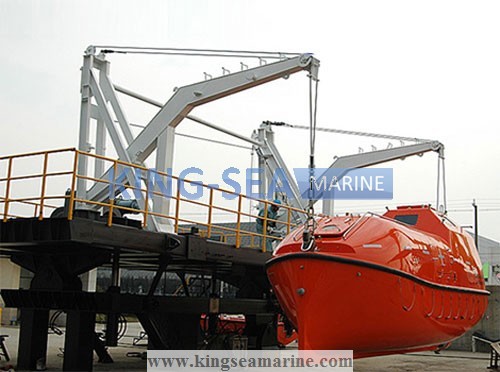

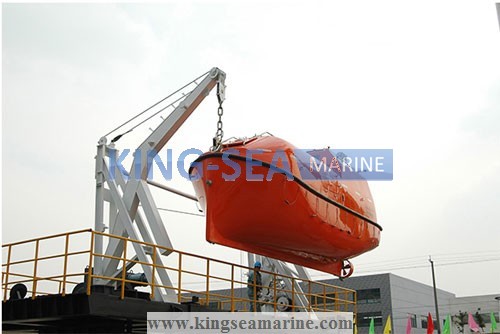

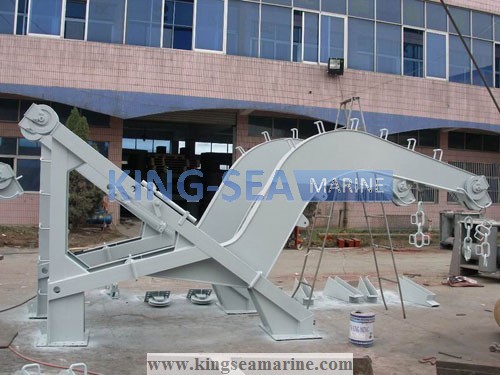

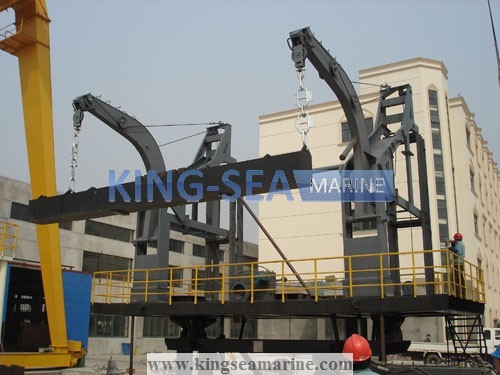

Delivery and Application Pic.:
