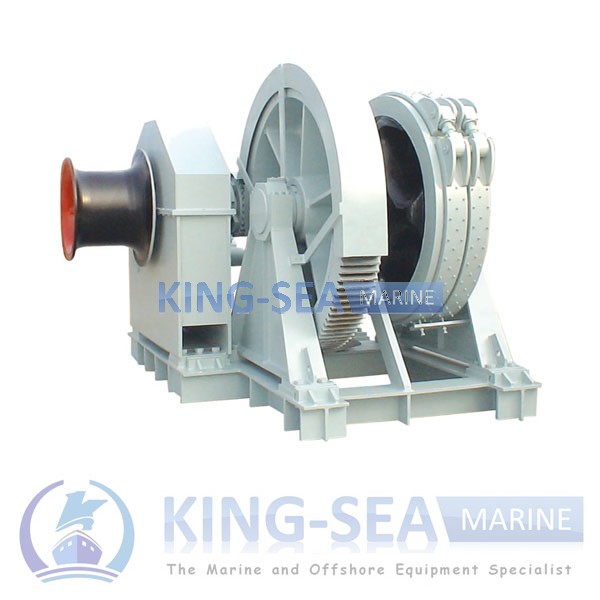

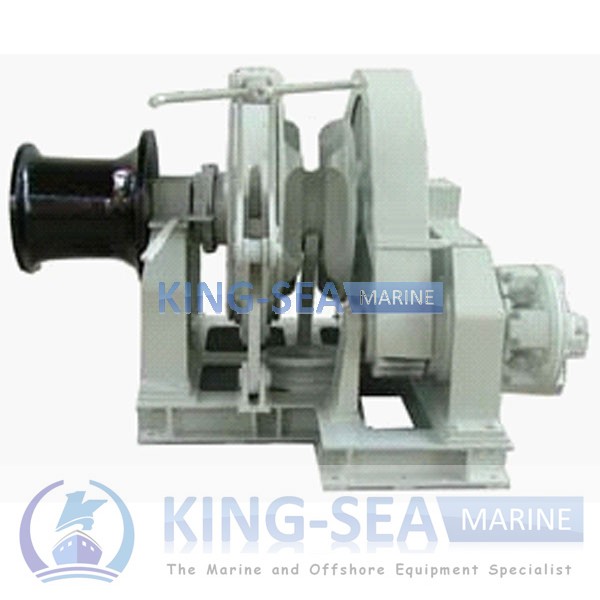

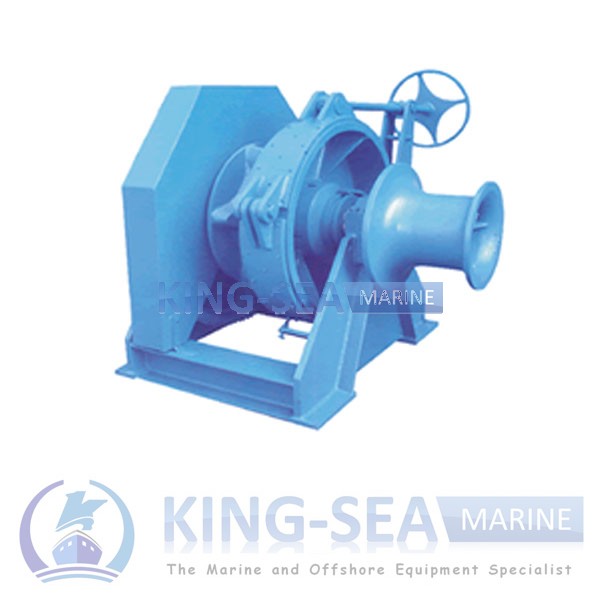

Hydraulic Single Windlass (Single Drum)
- Electric/Hydraulic/Diesel Drive Anchor Windlass
- Single and Double Gypsy Type
- Anchor Chain Size:12.5 - 114mm
- Rlated Load: 10KN-617 KN; Rated Speed: ≥9m/min
- Certificate Approval: ABS BV CCS DNV GL LR KR NK RINA RS etc.
- Local Control and Remote Control in Wheel House
- Option: Length and Tension Monitoring System; Stainless Steel Lined on Drum Brake Band; Chain Stopper
Share this:
KING-SEA MARINE could design and offer marine anchor windlass with specification from 10KN to 617kN, our windlass comply with international shipbuilding requirements and they have been approved and awarded certificates by ABS, BV, CCS, GL, DNV, LR, KR, NK, RINA, RS etc. of IACS member.

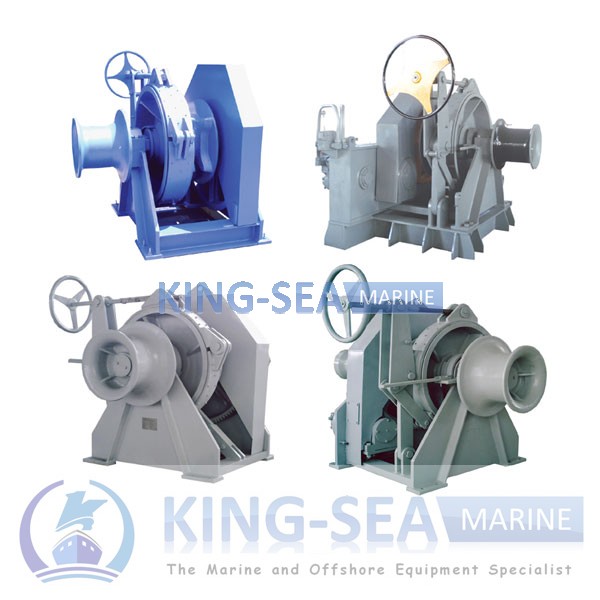

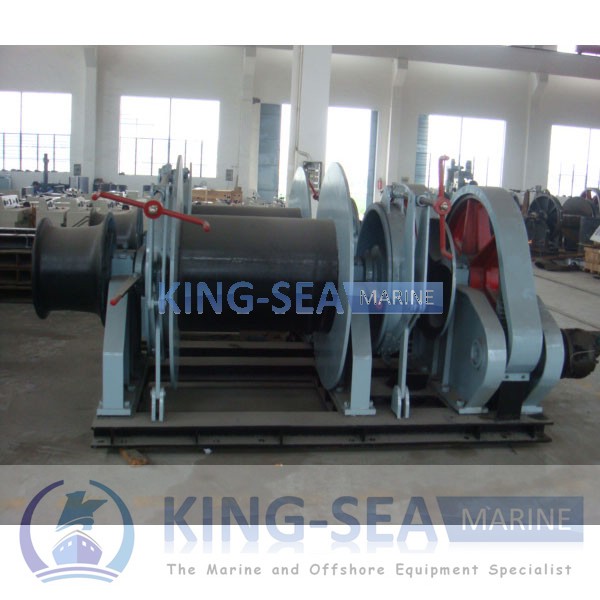

Anchor Windlass from KING-SEA MARINE have electric, hydraulic and diesel engine driven types, with single, double gypsy. Also we have the combined windlass; windlass/ towing winch; windlass/ mooring Winch.
Main Specification:
- Electric/Hydraulic/Diesel Drive Anchor Windlass
- Single and Double Gypsy Type
- Anchor Chain Size:12.5 - 114mm
- Rlated Load: 10KN-617 KN; Rated Speed: ≥9m/min
- Certificate Approval: ABS BV CCS DNV GL LR KR NK RINA RS etc.
- Local Control and Remote Control in Wheel House
- Option: Length and Tension Monitoring System; Stainless Steel Lined on Drum Brake Band; Chain Stopper
|
Chain Dia |
Working Load |
Supporting Load |
Working Speed |
Warping Load |
Motor Power (kW) |
|
|
(mm) |
(kN) |
(kN) |
|
|
Electric |
Hydraulic |
|
12.5 |
5.9 |
30 |
≥9 |
5 |
3/1.2 |
|
|
14/16/17.5 |
8.3/10.9/13.0 |
51/67/80 |
≥9 |
8 |
4.3/1.7 |
5.5 |
|
19/20.5/22 |
15.3/17.9/20.6 |
95/110/126 |
≥9 |
10 |
8.5/3.5 |
7.5 |
|
24/26 |
24.5/28.7 |
149/175 |
≥9 |
20 |
8.5/3.5 |
11 |
|
28/30 |
33.3/38.3 |
202/231 |
≥9 |
30 |
11/11/7.5 |
15 |
|
32/34/36 |
43.5/49.1/55.1 |
261/294/329 |
≥9 |
30 |
16/16/11 |
22 |
|
38/40/42 |
61.4/68.0/75.0 |
365/402/442 |
≥9 |
40 |
22/22/16 |
30 |
|
44/46/48 |
82.3/89.9/97.9 |
483/526/570 |
≥9 |
50 |
30/30/22 |
37 |
|
50/52/54 |
106.3/114.9/123.9 |
617/664/713 |
≥9 |
50 |
30/30/22 |
45 |
|
56/58/60 |
133.3/143.0/153 |
764/816/870 |
≥9 |
60 |
45/45/30 |
55 |
|
62/64 |
163.4/174.1 |
925/982 |
≥9 |
80 |
45/45/30 |
55 |
|
66/68 |
185.1/196.5 |
1040/1098 |
≥9 |
100 |
45/45/30 |
75 |
|
70/73 |
208.3/226.5 |
1160/1254 |
≥9 |
100 |
60/60/45 |
75 |
|
76/78 |
245.5/258.6 |
1350/1416 |
≥9 |
125 |
60/60/45 |
90 |
|
81/84 |
311.7/335.2. |
2171/2320 |
≥9 |
140 |
75/75/36 |
110 |
|
87/90 |
359.5/384.8 |
2473/2629 |
≥9 |
150 |
75/75/36 |
120 |
|
92/95 |
402.0/428.7 |
2735/2898 |
≥9 |
200 |
85/85/64 |
130 |
|
97/100 |
446.9/475.0 |
2995/3162 |
≥9 |
250 |
100/100/150 |
150 |
|
105/107 |
523.7/543.8 |
3612/3750 |
≥9 |
300 |
110/110/55 |
180 |
|
112/114 |
595.8/617.3 |
4109/4428 |
≥9 |
350 |
132/132/66 |
200 |
Note: the datas in table are just for reference, we could design and recommend correct model according to client's requirements, if you have no idea, just send us ur ship or project information, we could help you.
Packaging & Shipping:
For deck machinery, such as anchor windlass, we generally shipping by sea, also, if client is very urgent, we could choose by air. We have cooperated with many popular shipping Carriers and Airline, that means we have competitive price and good service ensurement on Sea and Air Cargo.
1. For small mooring winch, we will package by wooden case or pallet, and shipping by LCL.
2. For large mooring winch, we recommend by FCL, generally shipping by 20GP or 40GP if dimenssion is available for container. If some large dimension mooring winch, we will ship by Flat Rack Conatiner, or some other special containers.
Also, if you choose FOB price term, we will arrange transportation to ur assigned warehouse or place.
