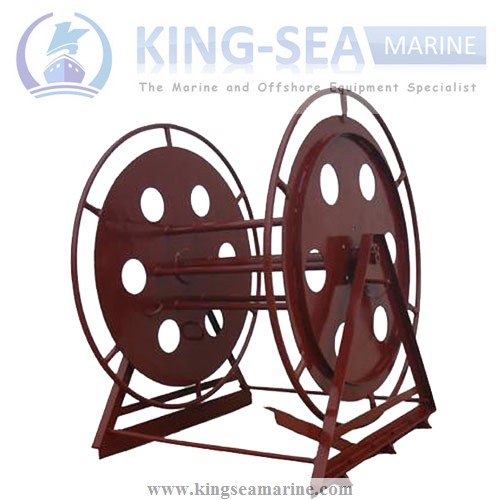

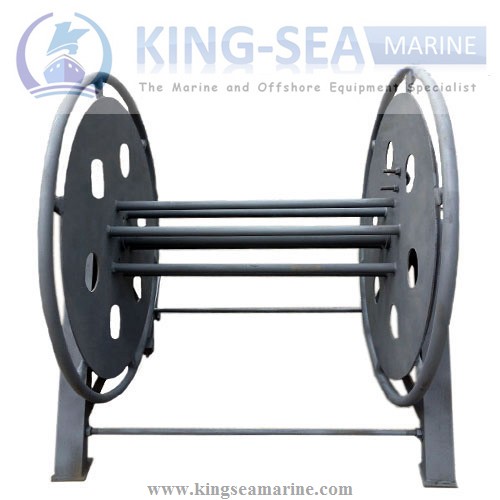

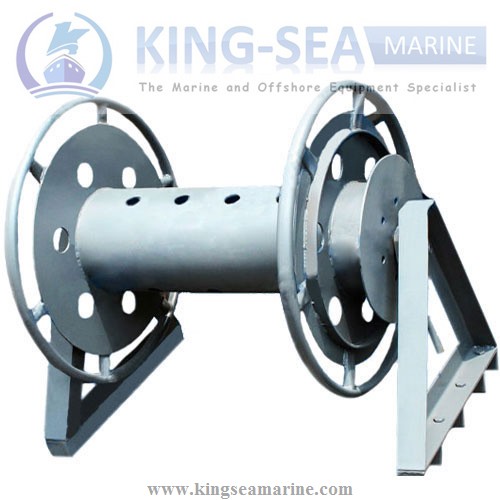

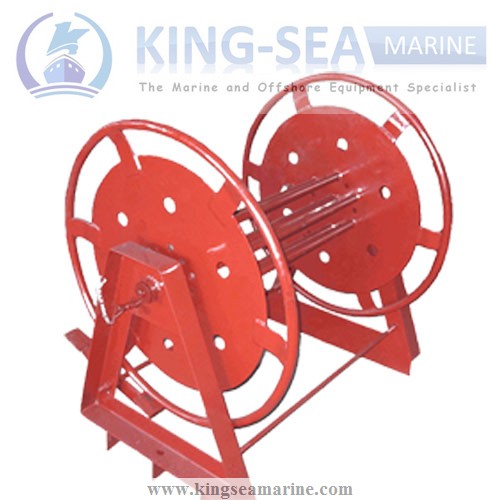

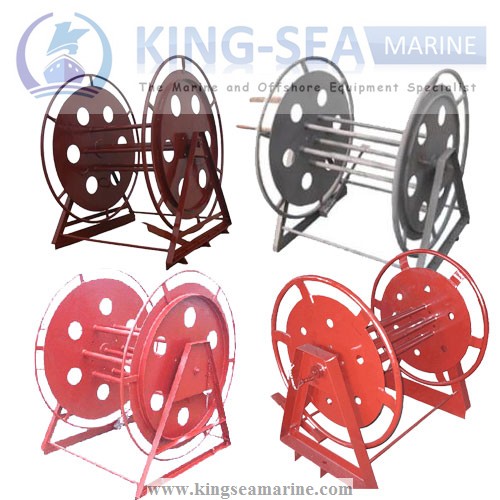

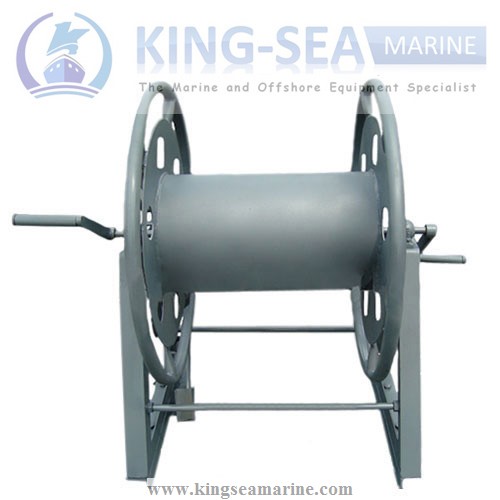

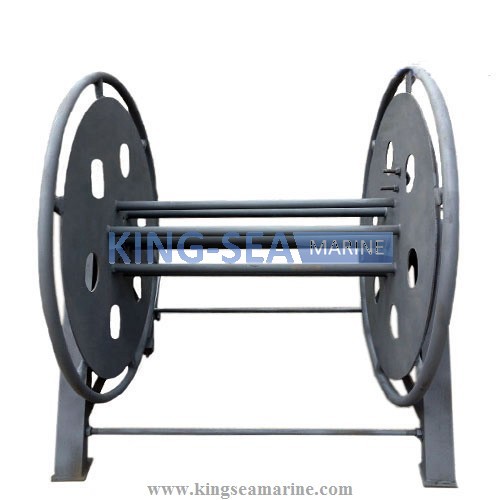

CB/T 498-95 Marine Mooring Fiber Wire Reel
- CB/T 498-95 Marine Mooring Fiber Wire Reel/Synthetic Fiber Rope Reel
- Applicable to Fiber Wires;
- Diameters of Fiber Wire: 28mm-72mm;
- Fiber Wire Length: 140m-220m;
-Certificate: ABS, CCS, BV, DNV, NK etc.
- Meet Customer's Special Requirements
Share this:

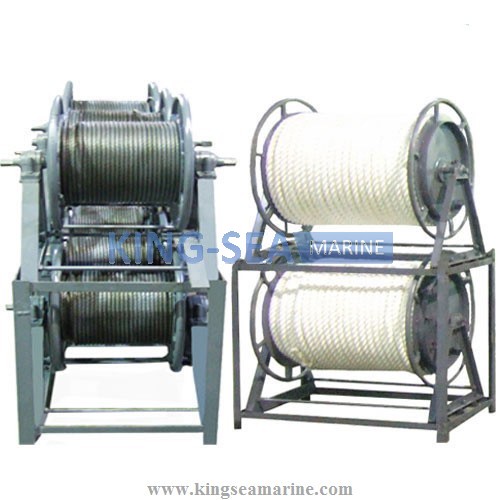

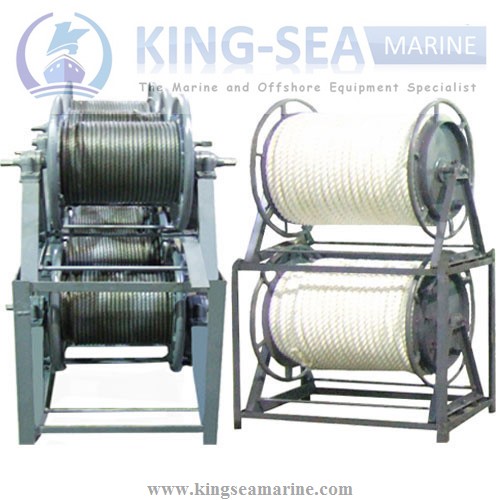

Marine mooring reel is used to store mooring ropes for all kinds of ships. CB/T 498-95 marine mooring reel is one common type. It is applicable to all ships to store marine fiber ropes. Fore more specific parameters, please refer to the following parameters sheet.
We also supply other standard mooring rope reels: CB/T3468-92 mooring steel wire reel, CB*875-78 bond cable reel, CB*3048-83 motor driven mooring steel wire reel and so on.
Product Details
- Applicable to Fiber Wires;
- Diameters of Fiber Wire: 28mm-72mm;
- Fiber Wire Length: 140m-220m;
- Screw Diameter: M16;
- Screw Quantity: 8,10,12;
- Material: Steel;
- Smooth and Clean Surface without Defects such as Burrs, Cracks, Sharp Corners etc.
- Lubricated, Anti-corrosive Painting
- Certificate: ABS, CCS, BV, DNV, NK etc.
- Meet Customer's Special Requirements
|
Model |
D1 |
D2 |
B |
H |
L |
L1 |
Weight |
φ(mm) |
Long (m) |
|
30 |
650 |
820 |
650 |
520 |
750 |
930 |
85.1 |
28;30 |
140-220 |
|
34 |
650 |
820 |
650 |
520 |
860 |
1046 |
89.1 |
32;34 |
160-220 |
|
38 |
650 |
820 |
650 |
520 |
880 |
1056 |
93.1 |
36;38 |
170-220 |
|
42 |
810 |
980 |
820 |
575 |
850 |
1046 |
118.5 |
40;42 |
170-220 |
|
46 |
810 |
980 |
820 |
575 |
930 |
1126 |
122.5 |
44;46 |
180-220 |
|
50 |
970 |
1140 |
980 |
655 |
910 |
1108 |
140.3 |
48;50 |
180-220 |
|
54 |
970 |
1140 |
980 |
655 |
930 |
1128 |
145.3 |
52;54 |
190-220 |
|
60 |
1150 |
1320 |
1140 |
745 |
905 |
1108 |
182.6 |
56;60 |
190-220 |
|
72 |
1330 |
1500 |
1310 |
830 |
920 |
1132 |
216.1 |
64;70;72 |
200-220 |
