CB/T 3468-1992 Marine Mooring Steel Wire Rope Reel
- CB/T 3468-1992 Marine Mooring Steel Wire Rope Reel
- Four Type: Type A,AW,B,C;
- Smooth and Clean Surface without Defects such as Burrs, Cracks, Sharp Corners etc.
- Lubricated, Anti-corrosive Painting
- Certificate: ABS, CCS, BV, DNV, NK etc.
- Meet Customer’s Special Requirements
Share this:

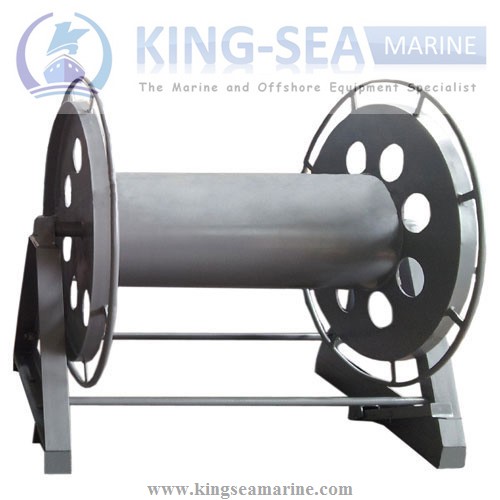

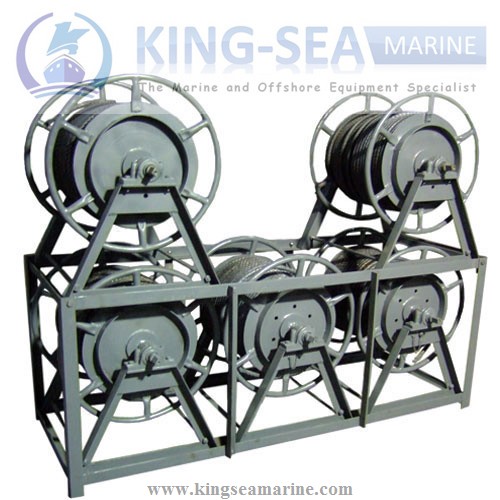

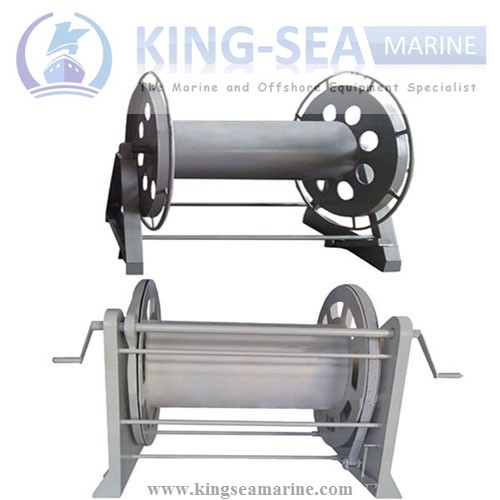

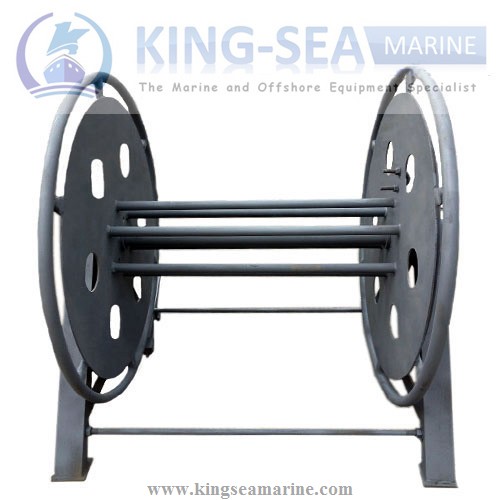

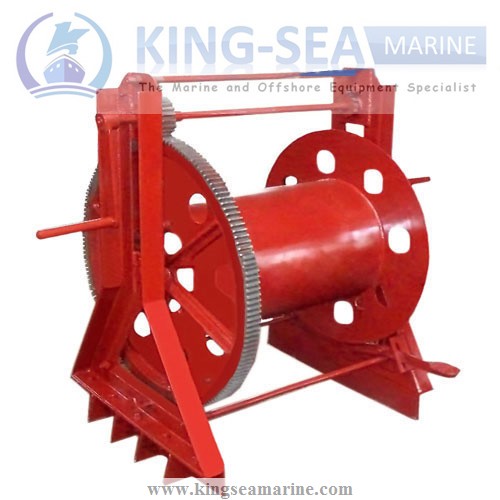

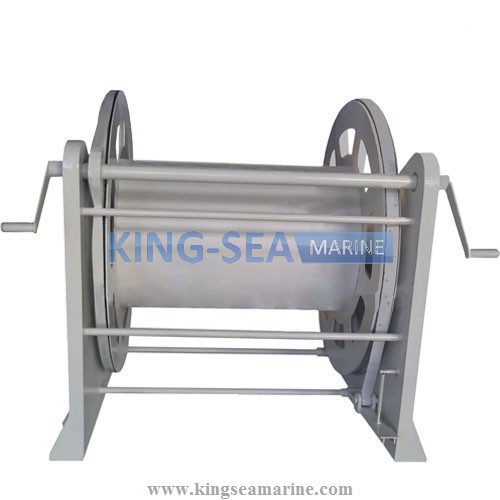

CB/T 3468-1992 Marine Mooring Steel Wire Rope Reel
CB/T 3468-1992 marine steel wire reel is used to store steel wire for all ships. It is not suitable for towing or stranded cables.

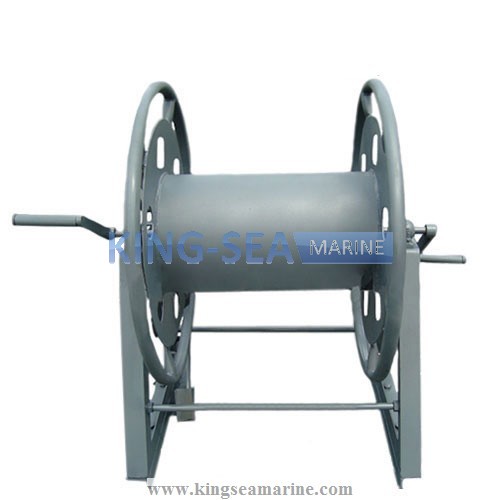

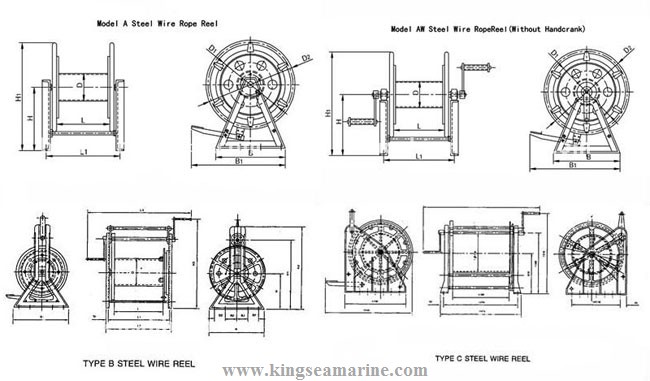

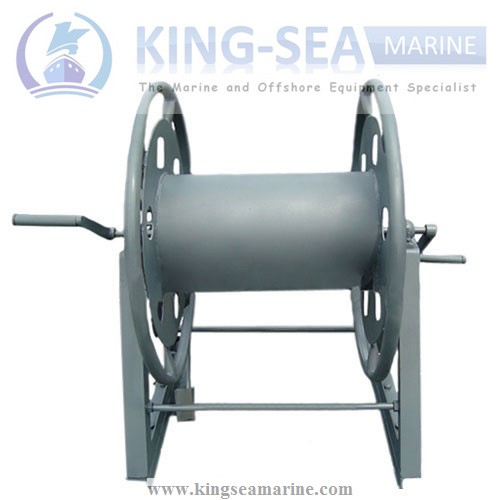

This standard marine ship rope reel has four different types: type A, AW, B, C. Except type AW, all the other three types have crank handle. Please refer to the drawing and corresponding product parameters.
Product Details:
- Applicable to Store Marine Steel Ropes;
- Four Type: Type A,AW,B,C;
- Applicable Steel Wire Max. Diameter: 13.0-56mm;
- Max. Length of Steel Wire:120m-300m;
- Bolts Quantity: 6-14;
- Material: Steel;
- Smooth and Clean Surface without Defects such as Burrs, Cracks, Sharp Corners etc.
- Lubricated, Anti-corrosive Painting
- Certificate: ABS, CCS, BV, DNV, NK etc.
- Meet Customer’s Special Requirements
CB/T 3468-1992 marine steel wire reel is used to store steel wire for all ships. It is not suitable for towing or stranded cables.
This standard marine ship rope reel has four different types: type A, AW, B, C. Except type AW, all the other three types have crank handle. Please refer to the drawing and corresponding product parameters.
Product Details:
- Applicable to Store Marine Steel Ropes;
- Four Type: Type A,AW,B,C;
- Applicable Steel Wire Max. Diameter: 13.0-56mm;
- Max. Length of Steel Wire:120m-300m;
- Bolts Quantity: 6-14;
- Material: Steel;
- Smooth and Clean Surface without Defects such as Burrs, Cracks, Sharp Corners etc.
- Lubricated, Anti-corrosive Painting
- Certificate: ABS, CCS, BV, DNV, NK etc.
- Meet Customer’s Special Requirements
|
Name |
Type |
No. |
Wire Rope(mm) |
Wire Long(m) |
|
|
Type A Steel Wire Rope(W-Nohandle) |
AW,A |
AW13 |
A13 |
13 |
120 |
|
AW17 |
A17 |
17 |
190 |
||
|
AW21 |
A21 |
20.5 |
180 |
||
|
AW26 |
A26 |
26 |
190 |
||
|
AW32 |
A32 |
32 |
190 |
||
|
Type B |
B |
B39 |
39 |
210 |
|
|
B48 |
47.5 |
230 |
|||
|
Type C |
C |
C56 |
56 |
300 |
|
