Application:

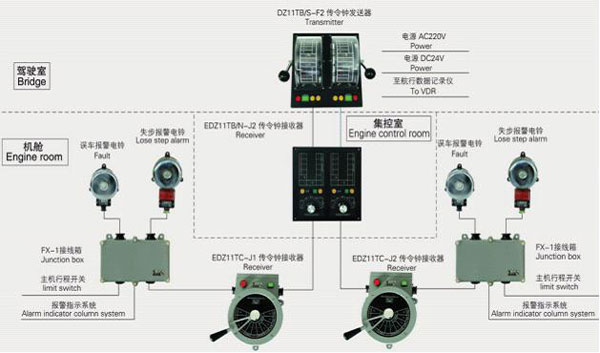

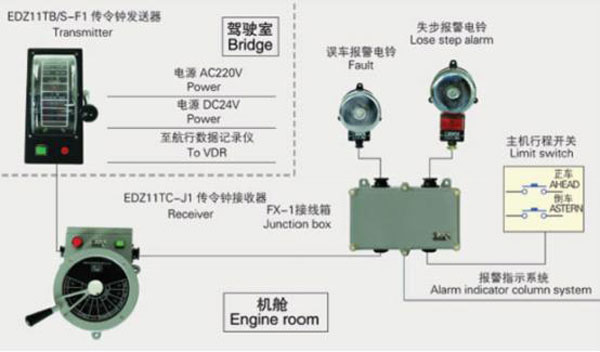

EDZ type electronic lighting telegraph is used in bridge and engine room or bridge and ecr transfer between main engine control command of the instrument, This series of products visual appearance, reliable performance, gear configuration agile, suitable for all kinds of ship's main engine system.

Features:

System structure concise

Instrument transmission wire less (6 core),

Convenient installation

Appearance delicate beautiful

Long service life


Details of product:

Main performance index:

Adaptive capacity to environment: Accord with Chinese standard, the relevant provisions of the target ship

IP rating: IP22(bridge house instrument)  IP44(engine room instrument)

Power and voltage: AC220V/50Hz DC24V(Two groups of power supply switch)

Alarm type: Main power supply of electricity, step out of alarm, wrong to alarm (and to the main switch fit)

Parking file number: 11、13 or as requirement.

Installation type: Vertical, wall, embedded, etc

VDR interface: Digital signal RS485, accord with IEC61162 standard
