Application:

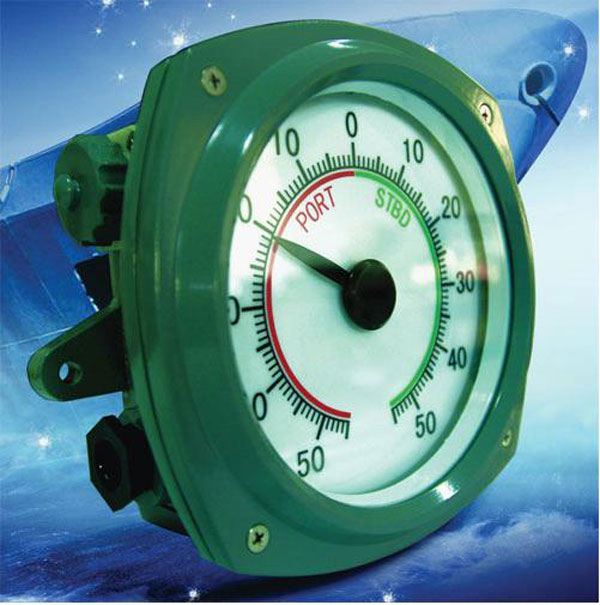

Rudder Angle indicator is used to guide ships the rudder blade rotation direction and the Angle of the instrument.
Features:
Main performance index
Conform to the standard of CCS, the main performance indicators are as follows:
Power and voltage: AC110V/AC220V, 50/60Hz
Pointer damping for no more than 3 seconds
Rudder Angle range for left 55 ° ~ 0 ~ right 55 ° (or custom);
Indicating accuracy: < 0.5 °
Distance of 1.5 meters of scale can be clearly read, the values of the show
Deatails of Product:
Specification:
|
Number |
Name |
Type |
Work voltage（V） |
Visual diameter
|
Dimming mode
|
IP rating |
weight（Kg） |
|
1 |

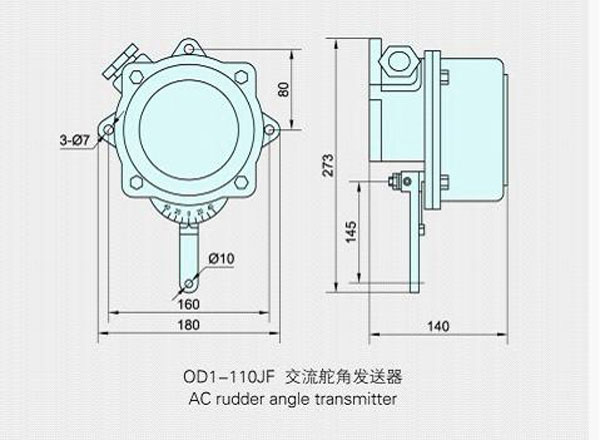

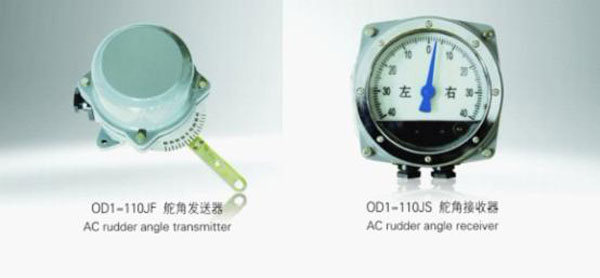

Rudder angle transmitter |
OFT-1 OFT-2 |
220 110 |
_ |
_ |
Ip56 |
4.0 |
|
2 |
Square embedded rudder Angle receiver
|
OQF1B-1 |
220 |
φ100 |
External dimming |
IP22 |
1.2 |
|
OQF1B-2 |
110 |
||||||
|
3 |
OQF1E-1 |
220 |
φ100 |
No lighting |
IP22 |
1.2 |
|
|
OQF1E-2 |
110 |
||||||
|
4 |
OQF2B-1 |
220 |
φ130 |
External dimming |
IP22 |
1.7 |
|
|
OQF2B-2 |
110 |
||||||
|
5 |
OQF2E-1 |
220 |
φ130 |
No lighting |
IP22 |
1.7 |
|
|
OQF2E-2 |
110 |
||||||
|
6 |
Circular wall ac rudder Angle receiver
|
OQY3B-1 |
220 |
φ160 |
External dimming |
IP22 |
3.5 |
|
OQY3B-2 |
110 |
||||||
|
7 |
OQY4B-1 |
220 |
φ200 |
External dimming |
IP22 |
4.2 |
|
|
OQY4B-2 |
110 |
||||||
|
8 |
OQY4E-1 |
220 |
φ200 |
No lighting |
IP22 |
4.0 |
|
|
OQY4E-2 |
110 |
||||||
|
9 |
Square circular wall ac rudder Angle receiver
|
OTN3A-1 |
220 |
φ160 |
Internal dimming |
IP56 |
3.7 |
|
OTN3A-2 |
110 |
||||||
|
10 |
OTN3E-1 |
220 |
φ160 |
No lighting |
3.5 |
||
|
OTN3E-2 |
220 |
||||||
|
11 |
Square circular wall ac rudder Angle receiver
|
OTN4A-1 |
220 |
φ200 |
Internal dimming |
IP56 |
4.5 |
|
OTN4A-2 |
110 |
||||||
|
12 |
OTN4B-1 |
220 |
φ200 |
External dimming |
4.3 |
||
|
OTN4B-2 |
110 |
||||||
|
13 |
OTN4E-1 |
220 |
φ200 |
Bo lighting |
4.3 |
||
|
OTN4E-2 |
110 |
||||||
|
14 |
Circular wall ac rudder Angle receiver
|
OTY4A-1 |
220 |
φ200 |
Internal dimming |
IP56 |
5.0 |
|
OTY4A-2 |
110 |
||||||
|
15 |
OTY4B-1 |
220 |
φ200 |
External dimming |
5.0 |
||
|
OTY4N-2 |
110 |
||||||
|
16 |
OTY4E-1 |
220 |
φ200 |
No lighting |
4.7 |
||
|
OTY4E-2 |
110 |
||||||
|
17 |
Double face rudder angle indicator receiver |
ODL5A-1 |
220 |
φ250 |
Internal dimming |
IP20 |
5.0 |
|
ODL5A-2 |
110 |
||||||
|
18 |
Three face top hung receiver
|
ODS6A-1 |
220 |
φ350 |
Internal dimming |
IP20 |
7.0 |
|
ODS6A-2 |
110 |
||||||
|
19 |
ODS7A-1 |
220 |
φ450 |
Internal dimming |
10 |
||
|
ODS7A-2 |
110 |
