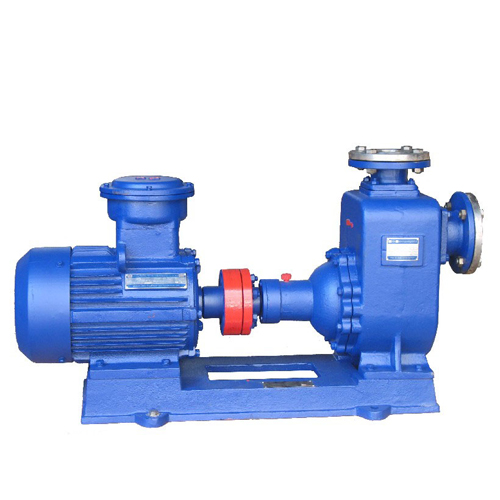

CYZ series Oil Transfer Pump:
CYZ series pumps are explosion-proof pumps, with self-spriming about 5 m. Has a simple structure, convenient operation and maintenance, stable operation, large displacement, high efficiency, easy to adjust, widely used, etc .
Application:
With explosion-proof performanc, CYZ pumps can transfer gasoline, kerosene, diesel, kerosene and other petroleum products; methanol, ethanol, alcohol and other flammable and explosive liquid.
With a big capacity, CYZ pumps suitable for land oil depot and oil tank truck, and other equipments of oil transportation.
As centrifugal pump, CYZ pumps can transfer salt water and fresh water well, can be used as bilge pump, if this kind of pump were on the Titanic, it would not sink to the bottom of the ocean.
Structure:
This kind of pump is axial liquid pump body structur, Pump body includes suction chamber, the liquid storage chamber, vortex chamber, the liquid hole, gas-liquid separation chamber, etc.
Pump bearings are single-row radial ball bearing. Cooling chamber is at the base of pump bearing, seal ring is inside of the pump. Shaft end adopts mechanical seal.
Model Explanation:
For the Model 80CYZ-A-32
80 stand for pump inlet nominal diameter mm
C stand for marine-type horizontal certrifugal pump
Y stand for transfer medium is solvent
Z stand for self-priming
A stand for impeller for the first time to improve
32 stand for pumping head diameter m
Main Technical parameter:
| Type | Motor power | Speed | Caliber | Capacity | Head | Suction height |
| (kw) | (r/min) | (mm) | (m 3 /h) | (m) | (m) | |
| 25CYZ-A-20 | 1.1 | 2900 | 25 | 3.2 | 20 | 6 |
| 25CYZ-A-20 | 1.5 | 2900 | 25 | 3.2 | 32 | 6 |
| 32CYZ-A-20 | 3 | 2900 | 32 | 3.2 | 50 | 6 |
| 40CYZ-A-20 | 1.5 | 2900 | 40 | 6.3 | 20 | 5 |
| 40CYZ-A-32 | 2.2 | 2900 | 40 | 6.3 | 32 | 5 |
| 40CYZ-A-40 | 4 | 2900 | 40 | 10 | 40 | 5 |
| 40CYZ-A-50 | 4 | 2900 | 40 | 6.3 | 50 | 5 |
| 50CYZ-A-12 | 1.5 | 2900 | 50 | 12.5 | 12 | 5 |
| 50CYZ-A-20 | 2.2 | 2900 | 50 | 15 | 20 | 5 |
| 50CYZ-A-30 | 3 | 2900 | 50 | 12.5 | 30 | 5 |
| 50CYZ-A-35 | 4 | 2900 | 50 | 12.5 | 35 | 5 |
| 50CYZ-A-40 | 4 | 2900 | 50 | 10 | 40 | 5 |
| 50CYZ-A-50 | 5.5 | 2900 | 50 | 12.5 | 50 | 5 |
| 50CYZ-A-60 | 7.5 | 2900 | 50 | 12.5 | 60 | 5 |
| 50CYZ-A-75 | 11 | 2900 | 50 | 15 | 75 | 5 |
| 65CYZ-A-15 | 3 | 2900 | 65 | 30 | 15 | 4 |
| 65CYZ-A-32 | 5.5 | 2900 | 65 | 25 | 32 | 5 |
| 65CYZ-A-50 | 7.5 | 2900 | 65 | 25 | 50 | 5 |
| 65CYZ-A-70 | 15 | 2900 | 65 | 25 | 70 | 5 |
| 80CYZ-A-13 | 3 | 2900 | 80 | 35 | 13 | 3.5 |
| 80CYZ-A-17 | 4 | 2900 | 80 | 43 | 17 | 3.5 |
| 80CYZ-A-22 | 5.5 | 2900 | 80 | 40 | 22 | 3.5 |
| 80CYZ-A-25 | 7.5 | 2900 | 80 | 50 | 25 | 4 |
| 80CYZ-A-32 | 7.5 | 2900 | 80 | 50 | 32 | 4 |
| 80CYZ-A-40 | 11 | 2900 | 80 | 50 | 40 | 4 |
| 80CYZ-A-55 | 18.5 | 2900 | 80 | 60 | 55 | 4.5 |
| 80CYZ-A-70 | 22 | 2900 | 80 | 60 | 70 | 4.5 |
| 100CYZ-A-20 | 7.5 | 2900 | 100 | 80 | 20 | 3.5 |
| 100CYZ-A-25 | 11 | 2900 | 100 | 100 | 25 | 4.5 |
| 100CYZ-A-32 | 15 | 2900 | 100 | 100 | 32 | 4.5 |
| 100CYZ-A-40 | 18.5 | 2900 | 100 | 100 | 40 | 4.5 |
| 100CYZ-A-50 | 22 | 2900 | 100 | 100 | 50 | 4.5 |
| 100CYZ-A-65 | 30 | 2900 | 100 | 100 | 65 | 4.5 |
| 100CYZ-A-75 | 30 | 2900 | 100 | 100 | 75 | 4.5 |
| 150CYZ-A-20 | 18.5 | 1450 | 150 | 180 | 20 | 4.5 |
| 150CYZ-A-30 | 30 | 1450 | 150 | 170 | 30 | 4.5 |
| 150CYZ-A-45 | 37 | 2900 | 150 | 160 | 45 | 4.5 |
| 150CYZ-A-55 | 45 | 2900 | 150 | 160 | 80 | 4.5 |
| 150CYZ-A-65 | 55 | 2900 | 150 | 170 | 65 | 4.5 |
| 150CYZ-A-80 | 55 | 2900 | 150 | 160 | 80 | 4.5 |
| 200CYZ-A-32 | 90 | 1450, | 200 | 400 | 32 | 4.5 |
| 250CYZ-A-50 | 90 | 1450 | 250 | 400 | 50 | 4.5 |
| 300CYZ-A-50 | 110 | 1450 | 300 | 500 | 50 | 4.5 |
