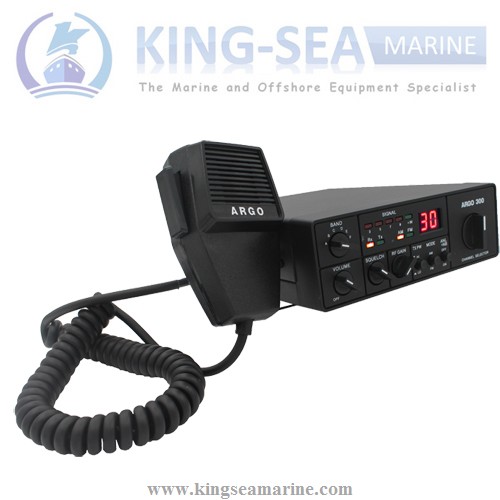

6 Bands 27 MHz Marine Wireless Transceiver
27 MHz CB Transceiver 6 Bands 240 Channels AM/FM Dual Mode
Share this:
GENERAL |
|
| 1. Frequency Coverage |
All 240 CB Channels 26.065 to 28.755 Mhz |
| 2. Modulation Mode | AM/FM modulation (A3) |
| 3. Antenna Impedance | 50 ohm |
| 4. Power supply required | 13.8V DC |
| 5. Dimensions – (WHD) | 160mm x 55mm x 210mm |
| 6. Weight | 1,100 g |
RECEIVER |
|
| 1. Sensitivity |
FM 1.0μV S/N 20 dB AM 1.0μV S/N 10 dB |
| 2. Adjacent channel rejection | 60dB (at 10KHz) greater than 70dB (for 20KHz) |
| 3. Intermediate Frequency |
1st IF = 10.695MHz 2nd IF = 455KHz |
| 4. Audio Output | 2 W at 8 ohm |
| 5. Frequency Response | 450-2500Hz |
| 6. Cross modulation | 45dB or better |
| 7. Squelch | 0.2μV to 500μV |
TRANSMITTER |
|
| 1. Output power |
AM/FM High 7W, Low 4W |
| 2. Modulation capability |
AM 100% FM ±2.5 KHz deviation max |
| 3. Spurious Radiation | 60dB or better |
| 4. Frequency Tolerance | Better than 0.005% |
| 5. Current Drain (13.8V) |
1.3 Amps (no modulation) 2.0 Amps (full modulation) |
More details of product, welcome to contact kevin@kingseamarine.com.
