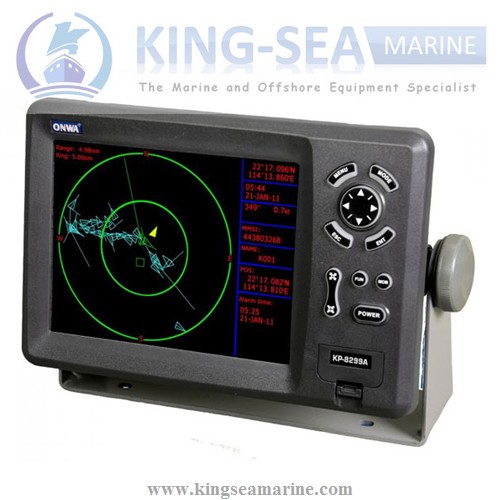

PLOTTER CHARACTERISTICS

1. Waypoints/icons

15,000 waypoints with name, symbol, 10 proximity waypoint

2. Routes

waypoint up to 200 points each, plus MOB and Track Navigation or Goto
Track modes

3. Tracks

30,000 point automatic track log; 15 saved track (up to 2000 track points
each) let you retrace your path in both directions

4. Alarms

XTE, Anchor drag, arrival, speed, voltage, proximity waypoint and time,
AIS alarm.

5. Pallete

Normal
Daylight exposed to sunlight
Night in dark environment
NOAA paperchart colors

6. Tides

Tide data

7. Projection

Mercator projection

8. Position format

Lat/Lon

9. Basemap

Built-in Onwa K-Chart

10. External Map

SD Cards slot for C-Map MAX

11. User data storage

Internal backup of user settings, or external SD-card

12. Plot Interval

1s to 99h or 0.01 nm to 9.99nm

13. Plotting scales

0.01nm to 1,000nm

14. Nav Datat

Inputs:
$–DBT, $–DPT, $–GGA, $–GLL,$–GSA, $–GSV,
$–HDG,$–HDM,$–HDT,$–MTW, $–RMB,$–RMC,
$–VTG, $–ZDA, $–VWR,$–VWT,$–MWD, $–VPW
Outputs:
$–AAM, $–APB, $–BOD,$–BWC,$–GGA, $–GLL,
$–RMB,$–RMC,$–VTG, $–XTE, $–ZDA
Outputs for autopilot:
$–AAM, $–APB, $–BOD,$–VTG

15. Perspective View

On/off

POWER SUPPLY

10.5 to 35VDC, current drain <500mA at 12V

PHYSICAL

1. Size

363.8mm(H)X267.9mm(W)X106mm(D)

2. Weight

3.95kg

3. Display

12.1-inches ColorTFT day-view LCD 800 X 600 pixels

4. Waterproofing

Display unit: IPX5
Antenna unit: IPX6

5. Temperature range

Display unit: -15℃ to +55℃
Antenna unit: -25℃ to +70℃

AIS CHARACTERISTICS

1. Transmitter x 1

(For KP-1299A ONLY)

2. Receiver x 2

(one time shared between AIS/DSC)

3. Frequency

156.025 to 162.025 MHz iin 25KHz steps

4. Output power

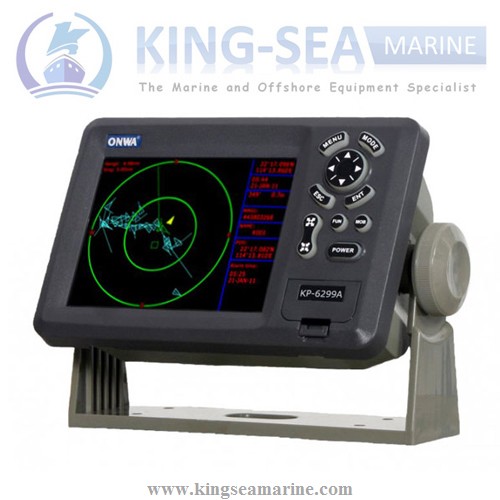

2 watts typical(For KP-6299A only)

5. Channel bandwidth

25KHz

6. Channel step

25KHz

7. Modulation modes

5KHz GMSK (AIS,TX AND RX)
25KHz AFSK (DSC,RX only)

8. Bit rate

9600 b/s +- 50 ppm (GMSK)
1200 b/s +- 30 ppm (FSK)

9. RX sensitivity

Sensitivity – 107dBm 25Khz
Message error rate less than: 2%
Co-channel 10dB
IMD 62dB
Blocking 84dB

EQUIPMENT LIST

Standard

1 Display unit

2 Antenna unit with 10m cable

3 Operator manual

4 Installation materials and standard spare parts

GPS RECEIVER CHARACTERISTICS

1. Receiver

50 parallel channel GPS receiver continuously Tracks and uses up to 50
satellites to compute and update your position

2. Acquisition times

Cold start: 27 seconds average
Warm start: 27 seconds average
Hot start: 1 seconds average:

3. Update rate

1/second,continuous

4. Accuracy

Position: 2.5 meters(95%) without S/A
Velocity: 0.1 Meter/sec without S/A
Time: ±100ns synchronized to GPS time

5. Dynamics

Altitude: 50,000m Max
Velocity: 500 m/s
Acceleration: 4g Max

6. Datum

WGS 84 & Others

7. Interfaces

NMEA 0183 input and output,RS232 and RS422 output

8. Antenna

KA07
