Purposes and Features:

1. Suitable for the BF stove top pressure equalizing system, use as furnace top equalizing relief valve.

2. Soft and hard seals through hard alloy and silicon rubber;,valve plate has a self-centering function, reliable seal.

3. Valve is sealed upon the action of medium pressure and hydraulic cylinder in the process of closing.

4. Valve disc can far from the brushing of the medium when the valve is opened.

5. Main material: quality carbon steel.

Executive Standard:

1. Flange connection dimensions carry out the provisions of GB/T9119-2000.

2. Pressure test refers to the provisions of GB13927-2008.

Note: Use other standards according to customer’s requirements, but please mark out while placing orders.

Performance Parameter:

Valve Model Compilation Instructions:

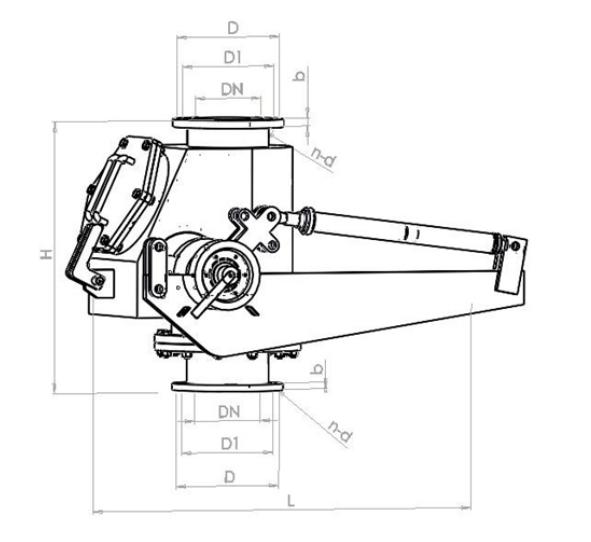

Drawing and Spec:

QP745Y/X Hydraulic Gas Spread Valve

Main Spec and Connection Dimensions:

Introduction:



We also can provide other model of blind plate valve, including series as below:

QP44Y INTERCEPTOR VALVE.

QP745Y/X HYDRAULIC EQUALIZING SPREAD VALVE .

QP742Y HYDRAULIC EQUALIZING VALVE、EQUALIZING SPREAD VALVE .

QP741Y/X EQUALIZING SPREAD VALVE.

QP47W BELL TYPE SOOT CLEANING VALVE.

QS41W GAS SPREAD VALVE.

QS42Y/X GAS SPREAD VALVE.

QS43Y、QS43Y/X GAS SPREAD VALVE.

QS744Y/X HYDRAULIC GAS SPREAD VALVE.
