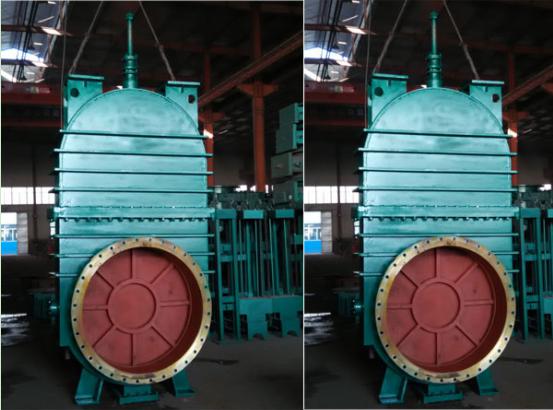

QZ741Y、QZ941Y Gate Valve

Rising stem wedge single disc gate valves

Functions and Features:

1. Suitable for the pipelines of gas, smoke, air and cold blast in blast furnace hot blast stove system, used for cutting off.

2. Drive Pattern: hydraulic transmission, electric drive, or configured according to customer requirements.

3. Single wedge disc structure with wedge set on valves.

4. Hard metal sealing surface.

5. Main Material: Q235, 16MnR structure or steel casting ZG 230-450, superior alloy steel.

Operative Standard:

1. Flange connection dimensions carry out the rules of GB/T9119-2000 PN6.

2. Structure length is non-standard structure length.

3. Pressure test is according to the rules of GB13927-2008.

Note: Other standards shall be acceptable based on the customer’s requirement and be marked out in order.

Performance Parameter:



Nominal Diameter(DN)（mm）		DN500~DN2200
Work Pressure（MPa）		≤0.4~0.6
Test Pressure（MPa）	Shell	1.5 times working pressure
	Seal	1.1 times working pressure
On/off Differential Pressure (MPa)		≤0.01
Working Temperature		≤530°C
Applicable Medium		Air, gas, smoke



Valve Model Instructions:



Enterprise Code	Q	QHD
Valve Type	Z	Gate Valve
Drive Mode	7/9	7-hydraulic / 9-electric
Connection Form	4	Flange connection
Structure Form	1	Rising stem wedge single disc
Material of Sealing Surface	Y	Hard alloy

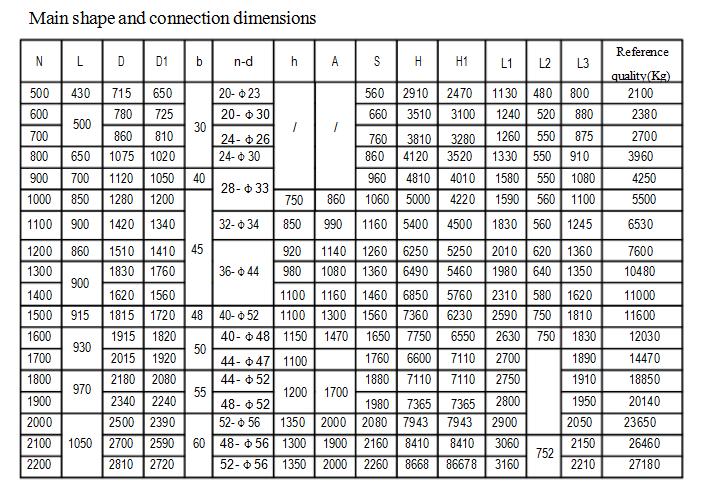

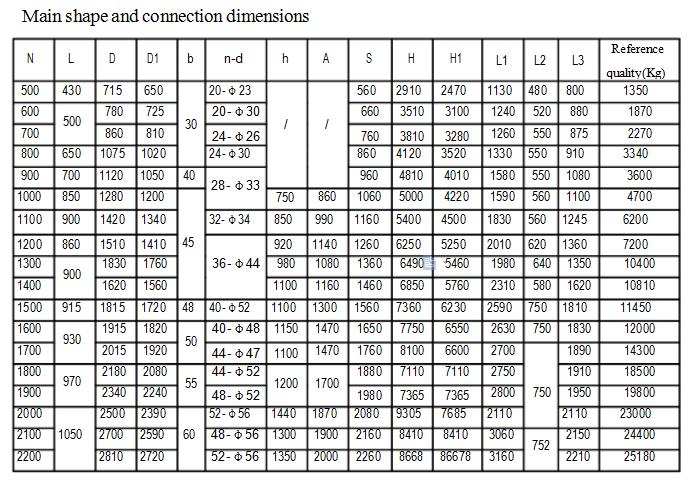

Drawing and Specs:

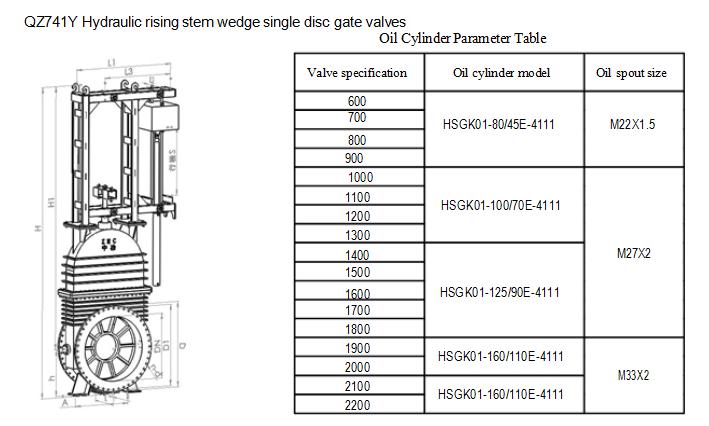

QZ741Y Gate Valve

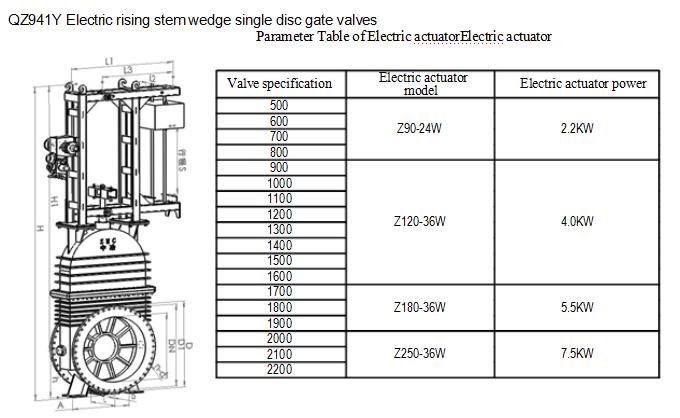

QZ941Y Gate Valve

Introduction:

We also can provide other model of gate valve, including series as below:



QZ741Y HYDRAULIC RISING STEM WEDGE SINGLE DISC GATE VALVES.

QZ941Y ELECTRIC RISING STEM WEDGE SINGLE DISC GATE VALVES .

QZ741Y HYDRAULIC RISING STEM WEDGE SINGLE DISC GATE VALVES.

QZ941Y ELECTRIC RISING STEM WEDGE SINGLE DISC GATE VALVES .

QZ747W HYDRAULIC RISING STEM WEDGE SINGLE DISC WATER-COOLING GATE VALVES .

QZ947W ELECTRIC RISING STEM WEDGE SINGLE DISC WATER-COOLING GATE VALVES .
