Shark Jaw and Towing Pin for Anchor Handling Tug Supply Vessel
- Capacity: 50T - 700T
- Shark Jaw Type: Hydraulic Triplex Type and Fork Type (Closed type)
- Towing Pin Type: Vertical and Inclined Type
- C/W: Electric control panel, hydraulic pump station
- Certificate: ABS, BV, CCS, GL, DNV, LR, RINA,etc.
- Application: AHTS, Tug boat, Working Vessel
Share this:

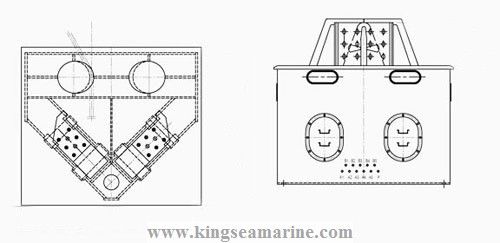

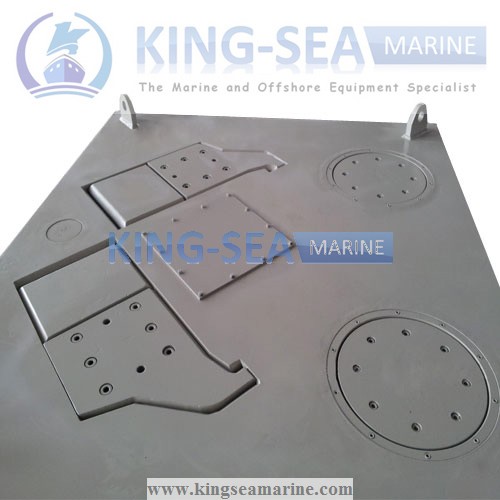

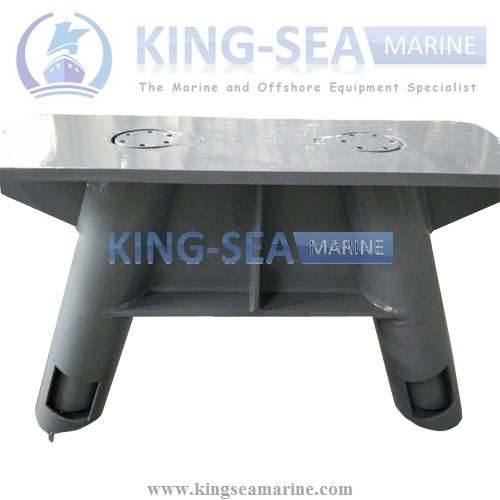

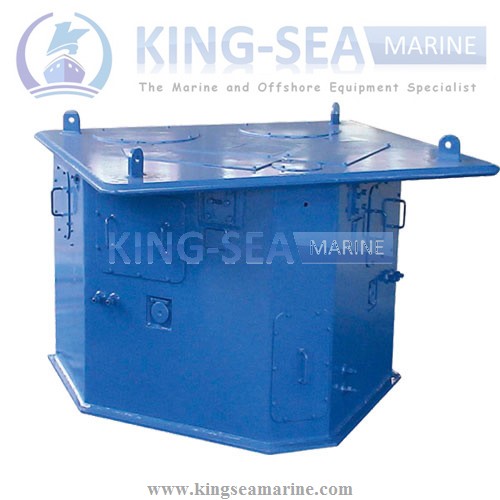

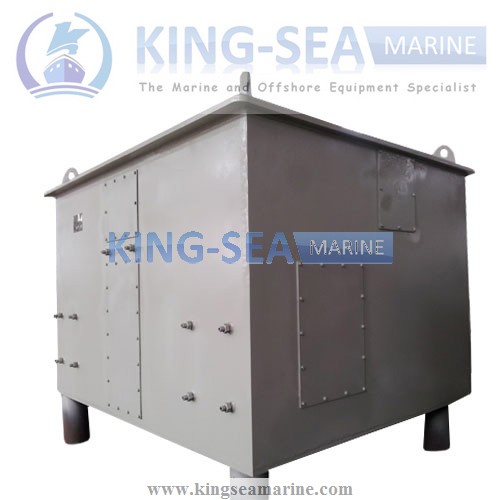

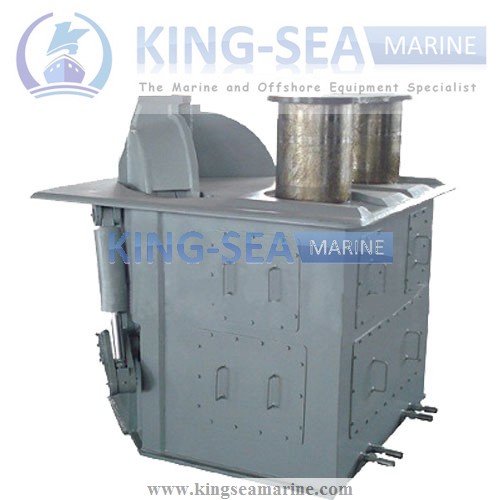

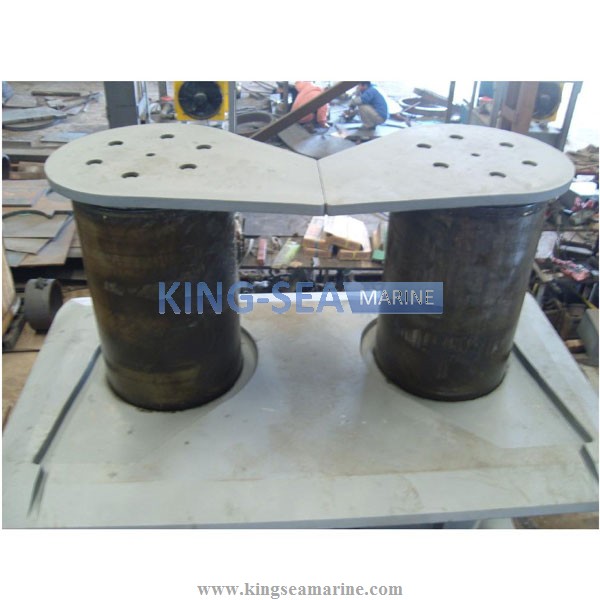

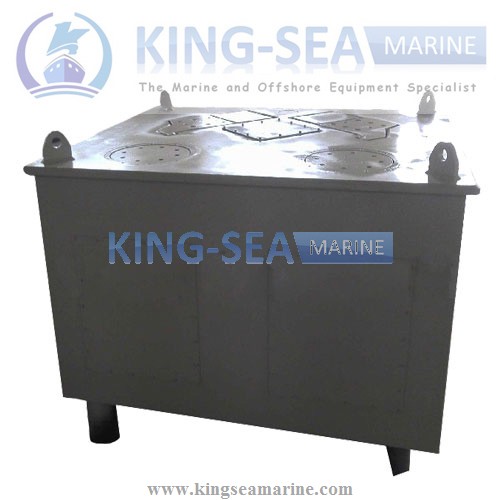

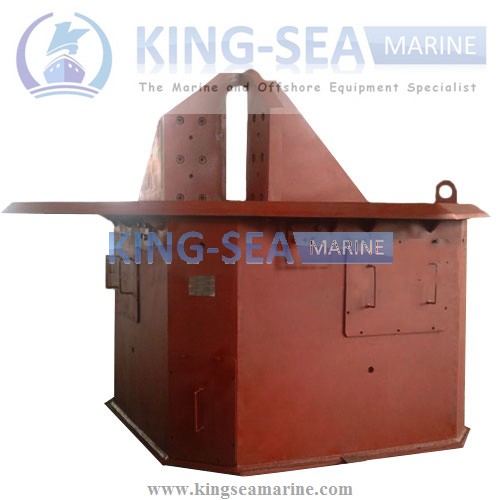

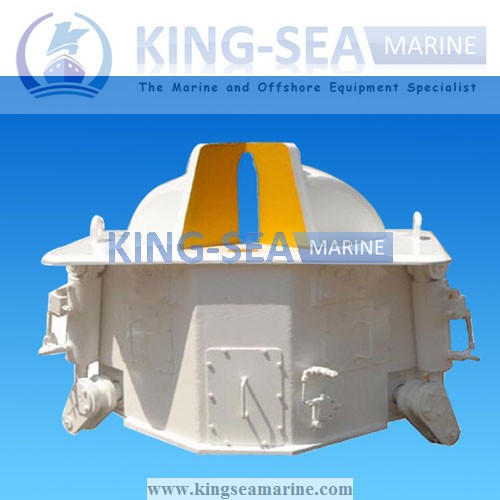

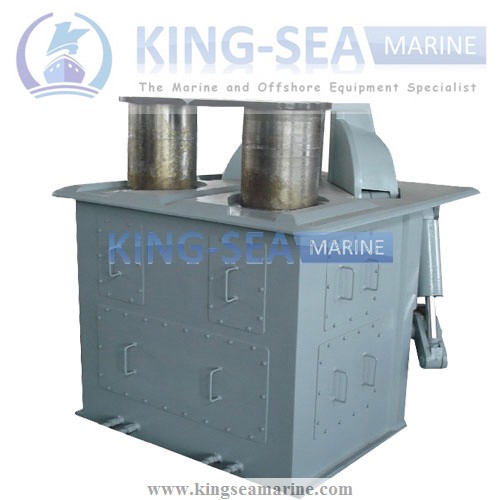

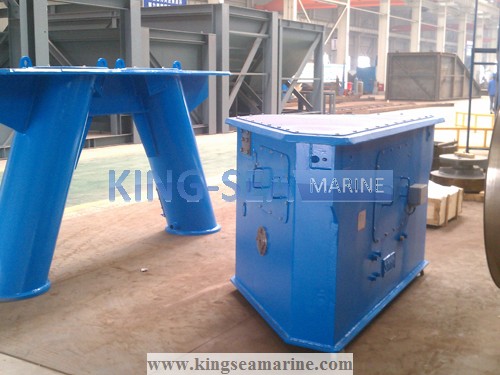

Marine Shark Jaw and Towing Pin:
King-Sea Marine could offer a full range of shark jaw for anchor handling tug supply vessels, standard types are 100, 200, 300, 400, 500, and 700 metric tons and all units perform quick release at the rated load, also we could supply type which clients required, such as 80T, 120T, etc.
- Our products could suit the operating characteristics of your vessel;
- Third-party certificate, load test, release tests and load monitoring systems are available options;
- Shark jaw and towing pin could suit both anchor chain and wire rope, all operations are remotely controlled from a control panel located in the pilot house and/or locally;
- Controls take advantage of PLC based technology allowing for easier installation with less electrical wiring;
- A dedicated hydraulic power unit is provided with each unit.
Main Specification:

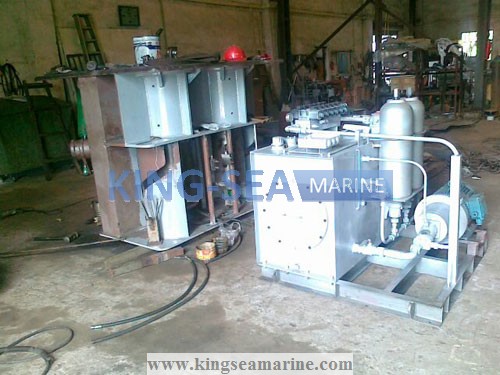

Hydraulic Pump Station and Electric Control Panels:

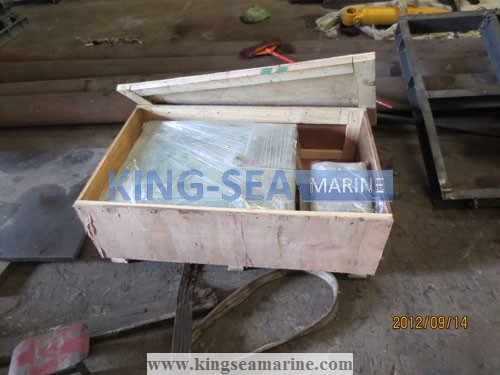

Delivery and Package of Shark Jaw and Towing Pin:
King-Sea Marine could offer a full range of shark jaw for anchor handling tug supply vessels, standard types are 100, 200, 300, 400, 500, and 700 metric tons and all units perform quick release at the rated load, also we could supply type which clients required, such as 80T, 120T, etc.
- Our products could suit the operating characteristics of your vessel;
- Third-party certificate, load test, release tests and load monitoring systems are available options;
- Shark jaw and towing pin could suit both anchor chain and wire rope, all operations are remotely controlled from a control panel located in the pilot house and/or locally;
- Controls take advantage of PLC based technology allowing for easier installation with less electrical wiring;
- A dedicated hydraulic power unit is provided with each unit.
Main Specification:
- Capacity: 50T - 700T
- Shark Jaw Type: Hydraulic Triplex Type and Fork Type (Closed type)
- Towing Pin Type: Vertical and Inclined Type
- C/W: Electric control panel, hydraulic pump station
- Certificate: ABS, BV, CCS, GL, DNV, LR, RINA,etc.
- Application: AHTS, Tug boat, Working Vessel
- Position: Stern
- Packaging Details: Standard Export Packing: Wooden Box, Pallet
- Delivery Detail: Within 3 months after placed order
|
Shark Jaw Model |
Towing Pin Model |
Bollard Pull (Ton) |
Holding Capacity |
Power Required (KW) |
|
(Ton) |
||||
|
SJ-100 |
TP-100 |
40 |
100 |
15 |
|
SJ-200 |
TP-200 |
60 |
200 |
22 |
|
SJ-300 |
TP-300 |
85 |
300 |
22 |
|
SJ-400 |
TP-400 |
120 |
400 |
30 |
|
SI-500 |
TP-500 |
150 |
500 |
30 |
|
SJ-700 |
TP-700 |
200 |
700 |
37 |

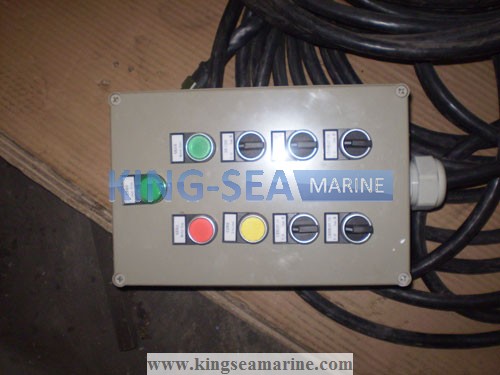

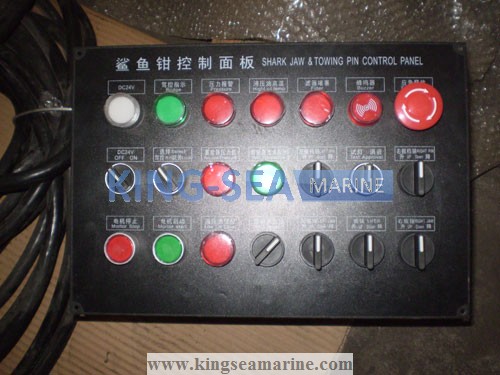

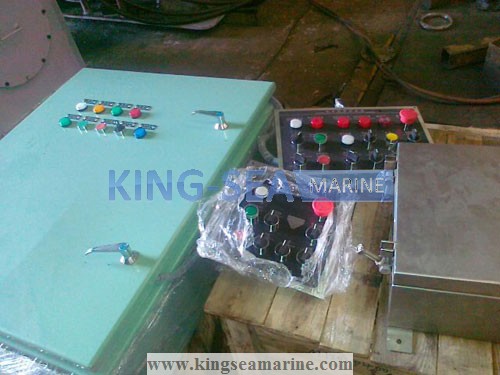

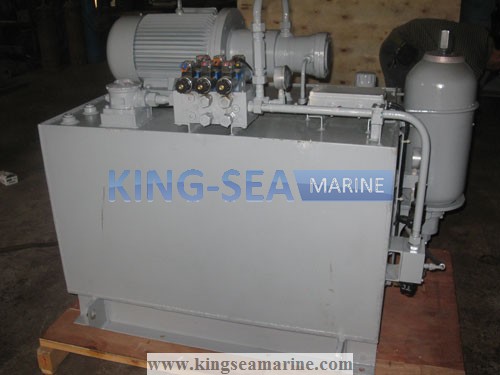

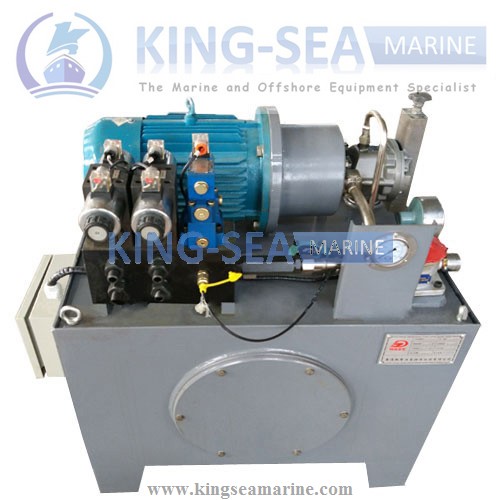

Hydraulic Pump Station and Electric Control Panels:

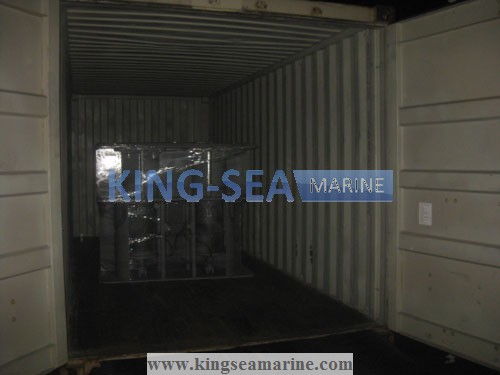

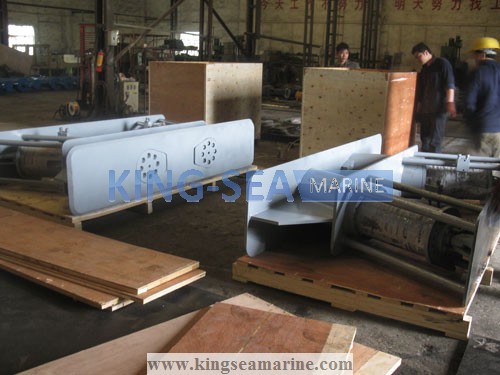

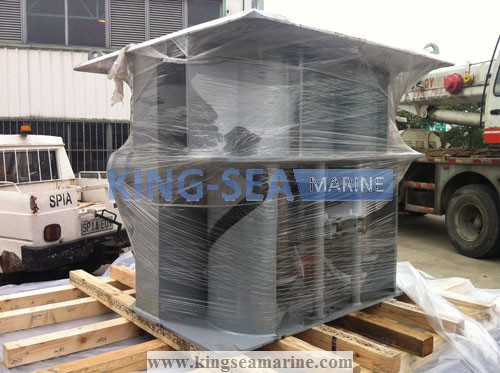

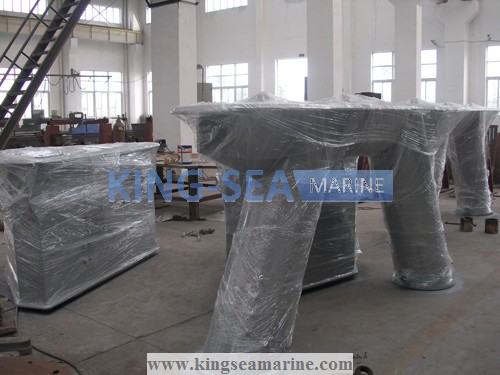

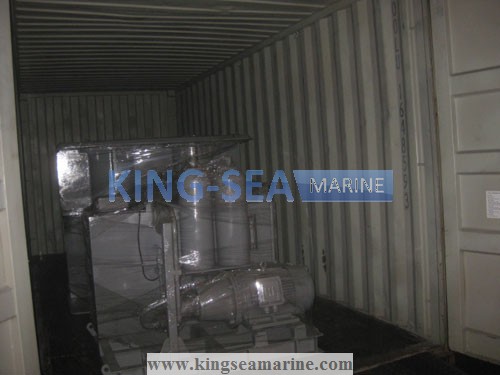

Delivery and Package of Shark Jaw and Towing Pin:
