Pivot Gravity Davit
- The Pivot Gravity Davit consists of two arms which swing lifeboat from stowed position to embarkation deck or directly to water
- Simple implantation & winch support integrated into the davit stool
- Necessity of heavy reinforcement on the ship structures
- Suitable for all types of Lifeboats
- Other sizes/dimensions available on request
Share this:
- The Pivot Gravity Davit consists of two arms which swing lifeboat from stowed position to embarkation deck or directly to water
- Simple implantation & winch support integrated into the davit stool
- Necessity of heavy reinforcement on the ship structures
- Suitable for all types of Lifeboats
- Other sizes/dimensions available on request
Basic specification for inquiry:
- Required lifting capacity
- Outreach – min / max
- Lifting height
- Lifting speed
- Luffing time
- Self-weight of the davit
- Power pack: (hydraulic, electric, or any other)
- Power source
- Required Classification societies

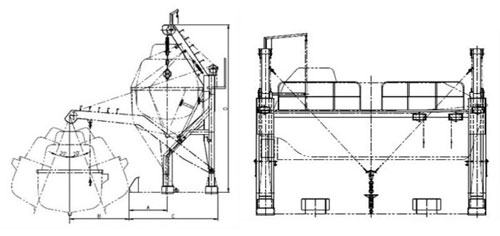

Drawings and Data:
|
Main Technical Specification |
||||||
|
Product No. |
S.W.L |
Main Dimensions(mm) |
Suitable Boat |
|||
|
KN |
A |
B |
C |
D |
||
|
KSM-GDPI-001 |
47 |
1200 |
2000 |
2600 |
5200 |
5m-6m |
|
KSM-GDPI-002 |
57 |
1250 |
2000 |
2650 |
5500 |
6m-7m |
|
KSM-GDPI-003 |
67 |
1300 |
2200 |
3100 |
6000 |
7.5m |
|
KSM-GDPI-004 |
87 |
1600 |
2680 |
3500 |
6600 |
8m-8.5m |
|
KSM-GDPI-005 |
105 |
1700 |
2800 |
3600 |
6700 |
9m |
|
KSM-GDPI-006 |
138 |
1900 |
3250 |
4500 |
8000 |
10m |
|
KSM-GDPI-007 |
170 |
2300 |
3600 |
5000 |
8500 |
12m |

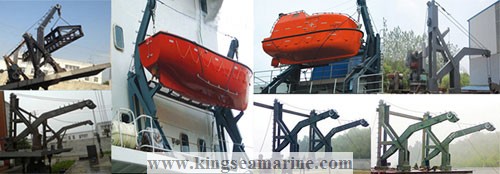

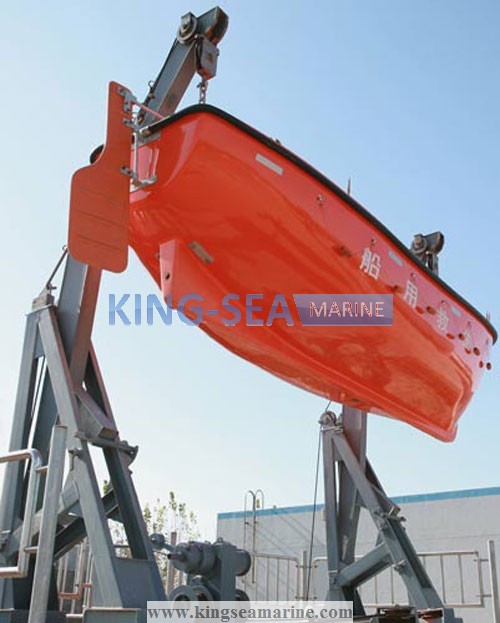

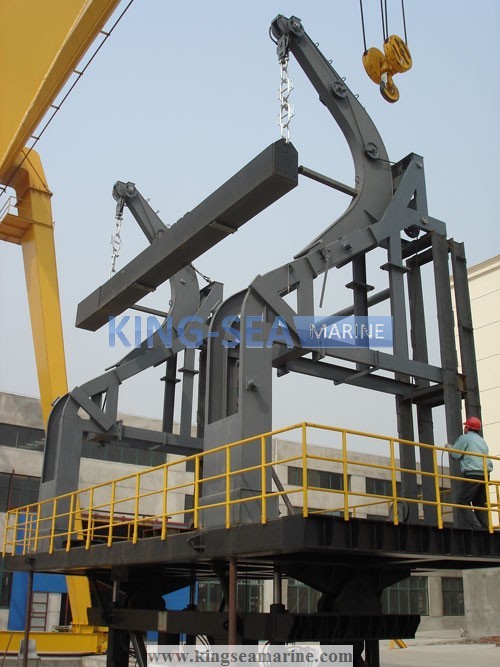

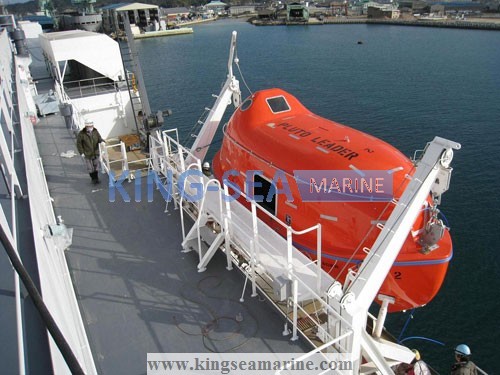

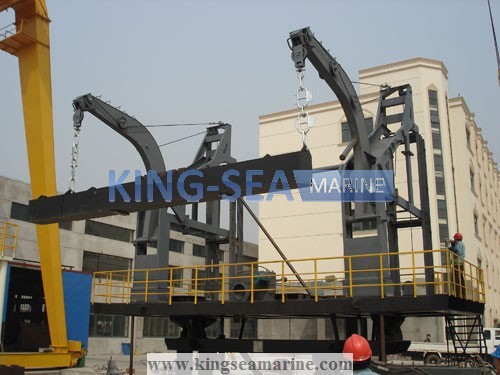

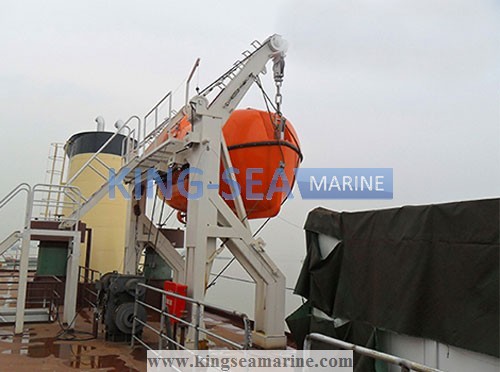

Delivery and Application picture:
