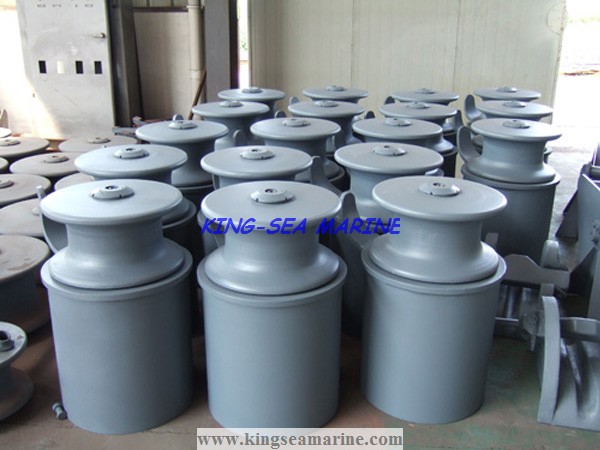

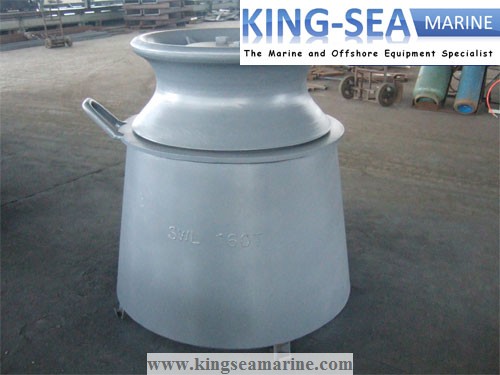

Marine Pedestal Cleat Fairlead
- Cleat Fairlead with Roller; CB/T, JIS, DIN Standard
- Material: cast iron, cast steel or as requested
- Short manufacturing term and prompt delivery.
- Surface Treatment: Polished, galvanized or bitumen painted
- Certificate: ABS, BV, CCS, LR, GL etc.
Share this:
|

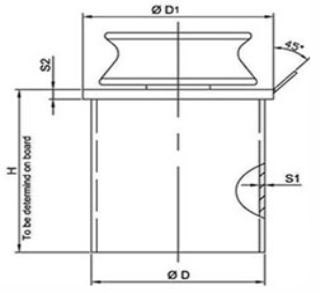

Product No. |
TYPE |
D(mm) |
D1(mm) |
S1(mm) |
S2(mm) |
H(mm) |
Fa(KN) |
|
PF-PE001 |
1 |
219,1 |
245 |
12,5 |
15 |
200-800 |
10 |
|
PF-PE002 |
2 |
273 |
300 |
12,5 |
15 |
200-800 |
20 |
|
PF-PE003 |
3 |
355,6 |
385 |
12,5 |
15 |
200-800 |
30 |
|
PF-PE004 |
5 |
457,2 |
485 |
12,5 |
15 |
200-800 |
50 |
|
PF-PE005 |
8 |
558,8 |
585 |
12,5 |
18 |
200-800 |
80 |
|
PF-PE006 |
12 |
660,4 |
620 |
14,5 |
18 |
200-800 |
120 |
|
PF-PE007 |
20 |
660,4 |
750 |
14,5 |
18 |
200-800 |
200 |
|
PF-PE008 |
32 |
812,8 |
845 |
16 |
20 |
200-800 |
320 |
|

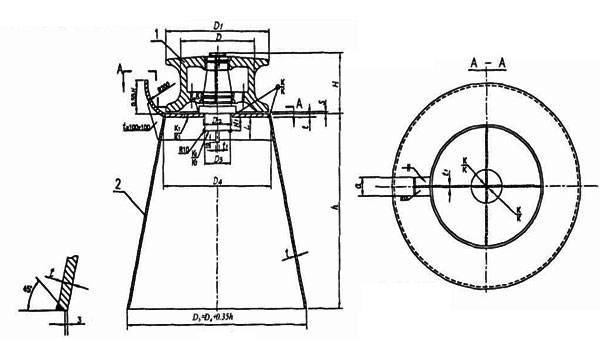

Roller Dia. |
Size |
Weight (kg) |
|||||||||||||
|
a |
D1 |
D2 |
D3 |
D4 |
H |
H1 |
K |
K1 |
L |
S |
t |
t1 |
Roller |
Base |
|
|
100 |
60 |
160 |
48 |
40 |
176 |
128 |
35 |
5 |
5 |
60 |
3 |
8 |
6 |
9.9 |
63.9 |
|
150 |
60 |
240 |
71 |
60 |
264 |
211 |
40 |
9 |
7 |
75 |
3 |
12 |
8 |
33.8 |
129.0 |
|
200 |
60 |
310 |
95 |
80 |
338 |
251 |
50 |
10 |
8 |
85 |
3 |
14 |
10 |
68.0 |
178.0 |
|
250 |
80 |
380 |
107 |
90 |
408 |
298 |
60 |
10 |
8 |
100 |
4 |
14 |
10 |
114.0 |
207.0 |
|
300 |
80 |
440 |
127 |
110 |
472 |
321 |
60 |
13 |
10 |
100 |
4 |
16 |
14 |
168.0 |
265.4 |
|
350 |
80 |
500 |
144 |
125 |
536 |
346 |
65 |
13 |
10 |
100 |
4 |
18 |
14 |
248 |
332.0 |
|
400 |
100 |
560 |
161 |
140 |
600 |
371 |
70 |
14 |
12 |
100 |
5 |
20 |
16 |
355.0 |
401.3 |
|
450 |
100 |
620 |
180 |
155 |
660 |
394 |
90 |
14 |
12 |
120 |
5 |
20 |
16 |
452.0 |
445.4 |
|
Roller Dia. |
Size |
Weight (kg) |
|||||||||||||
|
a |
D1 |
D2 |
D3 |
D4 |
H |
H1 |
K |
K1 |
L |
S |
t |
t1 |
roller |
Foundation bed |
|
|
150 |
60 |
240 |
90 |
85 |
264 |
154 |
30 |
9 |
7 |
75 |
5 |
12 |
8 |
24.8 |
129.0 |
|
200 |
60 |
310 |
115 |
110 |
338 |
186 |
30 |
10 |
8 |
85 |
5 |
14 |
10 |
49.3 |
178.0 |
|
250 |
80 |
380 |
135 |
130 |
408 |
230 |
35 |
10 |
8 |
100 |
6 |
14 |
10 |
92.0 |
207.0 |
|
300 |
80 |
440 |
155 |
150 |
472 |
255 |
35 |
13 |
10 |
100 |
7 |
16 |
12 |
127.0 |
265.0 |
|
350 |
80 |
500 |
175 |
170 |
536 |
271 |
35 |
13 |
10 |
100 |
7 |
18 |
14 |
168.0 |
332.0 |
|
400 |
100 |
560 |
185 |
180 |
600 |
307 |
40 |
14 |
12 |
100 |
7 |
20 |
16 |
252.5 |
401.3 |
|
450 |
100 |
630 |
210 |
205 |
670 |
316 |
40 |
14 |
12 |
120 |
7 |
20 |
16 |
310.0 |
452.0 |
Marine fairlead is used for guiding ropes in ship mooring and will not break down. They can be welded either into the bulwark or on deck. Used extensively throughout the marine industry and in certain rigging applications, fairleads are found on the majority of commercial shipping vessels.
We can supply all kinds of Marine Fairlead according to different standards. We can also make these products according to buyer's drawings.
