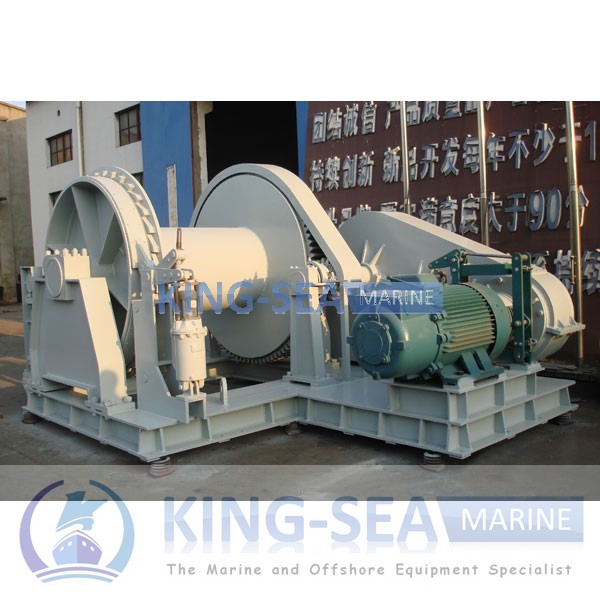

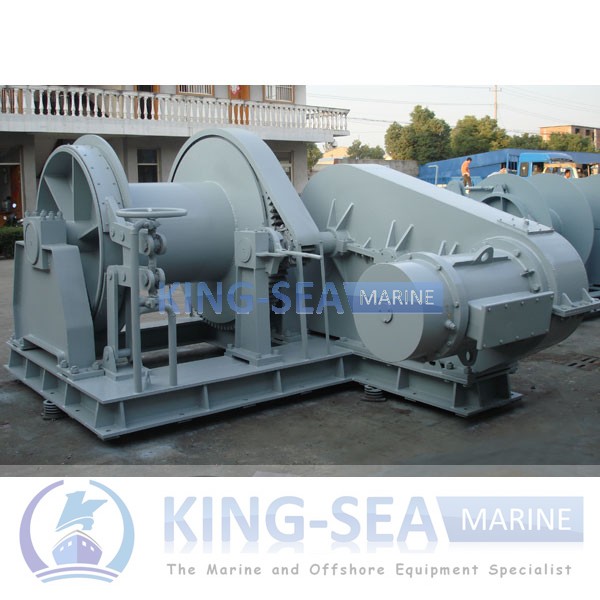

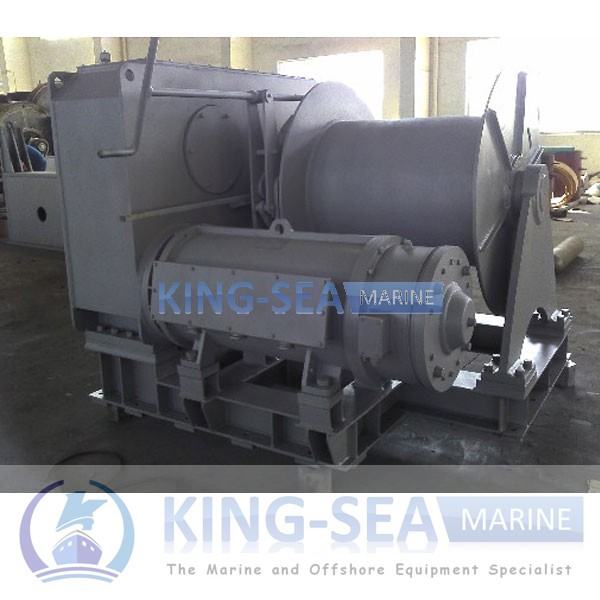

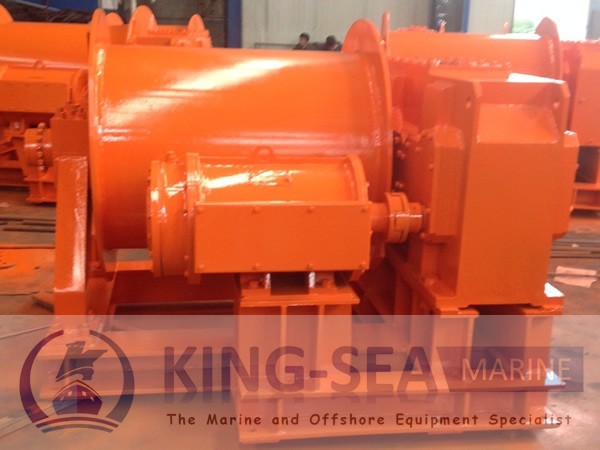

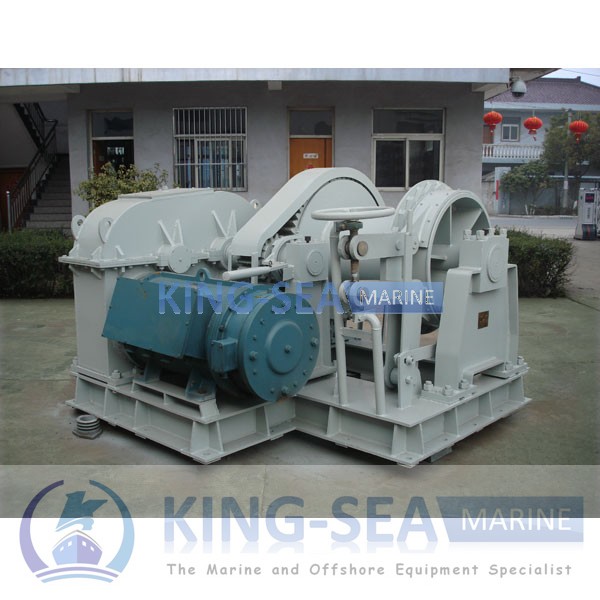

Marine Electric Mooring Winch
- Electric/Hydraulic/Diesel Type Mooring Winch (Single and Multi-drum Type)
- Anchor Chain Size: 11-97mm
- Mooring Winches: up to 400T Brake Holding
- Certificate Approval: ABS BV CCS DNV GL LR KR NK RINA RS etc.
- With drag brake system
- Configuration: horizontal arrangement
- Rope speed: complying with ISO requirements
Share this:
KING-SEA MARINE could design and offer marine mooring winch with specification from 10KN to 3000kN, our mooring winch comply with international shipbuilding requirements and they have been approved and awarded certificates by ABS, BV, CCS, GL, DNV, LR, KR, NK, RINA, RS etc. of IACS member.
Mooring winch from KING-SEA MARINE have electric, hydraulic and diesel engine driven types, with single, double, and multiply drums. Also we have the combined mooring winch.
Main Specification:
- Driven Type: Electric / Hydraulic / Diesel Engine Type
- Drum Type: Single or Double Drum, Waterfall
- Duty Pull: 3 to 300T
- Brake Holding: 10T to 400T
- Full Dynamic Position Interfacing
- Load and Length Monitoring System
- Mechanical Dynamic Braking System
- Friction Clutch Control
- Control: Local Control and Remote Control in Wheel House
- Option: Length and Tension Monitoring System; Stainless Steel Lined on Drum Brake Band; Spooling Device; Auto Tension
- Certificate Approval: ABS BV CCS DNV GL LR KR NK RINA RS etc.
|
Rated Pull |
Rated Speed |
Drum Capacity |
Motor Power |
|
|
(kW) |
||||
|
(kN) |
(m/min) |
(m) |
Electric |
Hydraulic |
|
5 |
≥12 |
φ8×100 |
3/1.2 |
|
|
10 |
≥12 |
φ10×150 |
4.3/1.7 |
5.5 |
|
20 |
≥12 |
φ15×150 |
8.5/3.5 |
11 |
|
30 |
≥15 |
φ17×150 |
11/11/7.5 |
|
|
40 |
≥15 |
φ18×150 |
16/16/11 |
22 |
|
50 |
≥15 |
φ20.5×180 |
22/22/16 |
30 |
|
75 |
≥15 |
φ26×200 |
30/30/22 |
45 |
|
80 |
≥15 |
φ26×200 |
30/30/22 |
|
|
100 |
≥15 |
φ30×200 |
45/45/30 |
45 |
|
125 |
≥15 |
φ30×200 |
45/45/30 |
|
|
160 |
≥15 |
φ32×250 |
60/60/45 |
75 |
|
200 |
≥9.6 |
φ41×250 |
45/45/30 |
75 |
|
250 |
≥9.6 |
φ44.5×250 |
60/60/45 |
90 |
|
315 |
≥7.8 |
φ522×250 |
60/60/45 |
90 |
|
400 |
≥7.8 |
φ56×250 |
85/85/64 |
110 |
|
450 |
≥6 |
φ56×250 |
|
110 |
|
500 |
≥7.8 |
φ58×250 |
85/85/64 |
110 |
|
560 |
≥6 |
φ64×250 |
85/85/64 |
132 |
|
600 |
≥6 |
φ64×250 |
85/85/64 |
132 |
|
650 |
≥6 |
φ70×250 |
85/85/64 |
132 |
|
1000 |
≥4 |
φ85×250 |
85/85/64 |
132 |
|
1200 |
≥4 |
φ95×250 |
120/120/90 |
160 |
|
1500 |
≥4 |
φ95×250 |
150/150/72 |
200 |
|
1800 |
≥4 |
φ95×250 |
150/150/72 |
250 |
|
2000 |
≥4 |
φ100×250 |
180/180/270 |
270 |

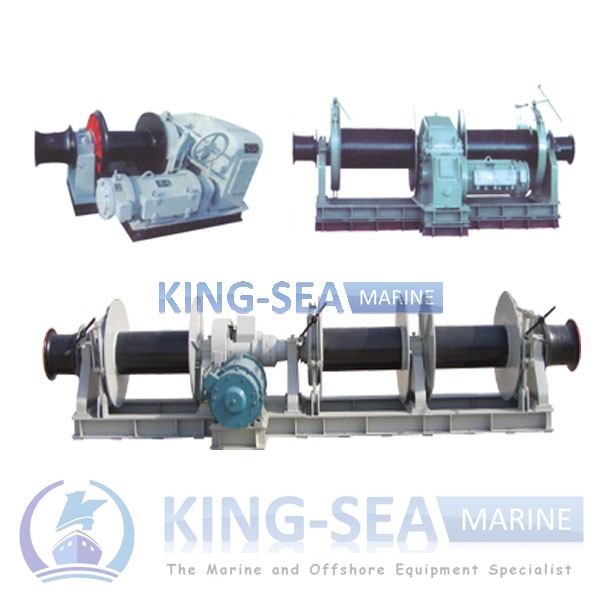

Main Types of Mooring Winch from KING-SEA MARINE:
- Electric Single Drum Mooring Winch
- Electric Double Drums Mooring Winch
- Hydraulic Single Drum Mooring Winch
- Hydraulic Double Drums Mooring Winch
- Diesel Driven Type Mooring Winch
- Electric Anti-Explosion Mooring Winch (Single/Double Drum)
- Electric/Hydraulic Combined Anchor Windlass/Mooring Winch
Packaging & Shipping:
For deck machinery, such as mooring winch, we generally shipping by sea, also, if client is very urgent, we could choose by air. We have cooperated with many popular shipping Carriers and Airline, that means we have competitive price and good service guarantee on Sea and Air Cargo.
1. For small mooring winch, we will package by wooden case or pallet, and shipping by LCL.
2. For large mooring winch, we recommend by FCL, generally shipping by 20GP or 40GP if dimension is available for container. If some large dimension mooring winch, we will ship by Flat Rack Container, or some other special containers.
Also, if you choose FOB price term, we will arrange transportation to ur assigned warehouse or place.
