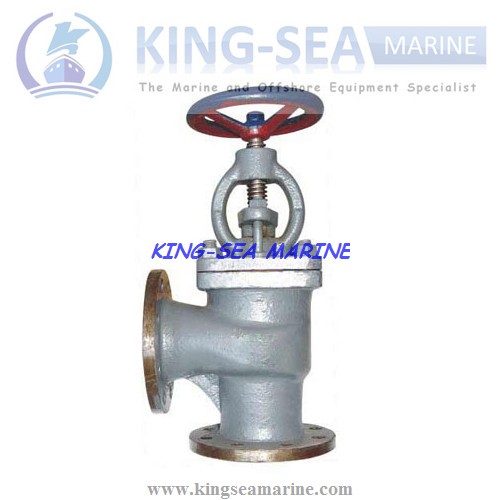

Marine Cast Iron Flanged Stop Check Valve
Marine Cast Iron Flange Stop Check Valve
1.Design standard:GB/T11689. 2.End standard:GB/T2501&GB/T569. 3.End type:Flange. 4.PN:0.6/1.0/1.6Mpa. 5.DN:20mm-300mm.
Share this:
Marine Cast Iron Flange Stop Check valve
Description:
1.Design standard:GB/T11689.
2.End standard:GB/T2501&GB/T569.
3.End type:Flange.
4.PN:0.6/1.0/1.6Mpa.
5.DN:20mm-300mm.
6.Main material:
- Body/Bonnet:HT200;
- Seat:SS410/BC;
- Stem:SS410/BS;
- Disc:SS410/BC.
7.Application:Sea water piping,fresh water piping,oil piping and steam piping.
8.Function:Such valves are used for on-off and preventing refluence.
9.Fundamental dimensions of Marine Cast Iron Stop Check Valve
Chart 1 Fundamental dimensions of type A and B:
|
PN (MPa) |
DN (mm) |
Structure Dimension |
Thickness |
Flange |
Bolt |
Hand wheel |
Lift Range m |
Weight(kg) |
|||||||||||
|
L |
H≈ |
H1 |
|||||||||||||||||
|
A |
B |
A |
B |
B |
D |
D1 |
D2 |
d0 |
b |
n |
Th |
Do |
S |
A |
B |
||||
|
1.0 |
65 |
290 |
1 15 |
310 |
277 |
115 |
9 |
155 |
123 |
104 |
15 |
15 |
6 |
M14 |
140 |
12 |
18 |
18.9 |
16.7 |
|
80 |
310 |
125 |
345 |
304 |
125 |
9 |
170 |
138 |
118 |
15 |
15 |
8 |
M14 |
160 |
14 |
24 |
23.0 |
19.9 |
|
|
100 |
350 |
150 |
374 |
325 |
135 |
10 |
190 |
158 |
138 |
15 |
15 |
8 |
M14 |
180 |
14 |
35 |
31.O |
27.2 |
|
|
125 |
400 |
175 |
426 |
366 |
155 |
10 |
215 |
183 |
164 |
15 |
15 |
10 |
M14 |
200 |
17 |
44 |
39.3 |
37.5 |
|
|
150 |
480 |
180 |
482 |
410 |
160 |
11 |
240 |
208 |
190 |
15 |
16 |
12 |
M14 |
200 |
17 |
57 |
55.5 |
48.4 |
|
|
1.6 |
20 |
150 |
75 |
217 |
203 |
75 |
7 |
95 |
68 |
48 |
13 |
14 |
4 |
M12 |
80 |
8 |
7 |
5.7 |
5.1 |
|
25 |
160 |
80 |
217 |
203 |
80 |
7 |
105 |
73 |
56 |
13 |
14 |
4 |
M12 |
80 |
8 |
7 |
6.0 |
5.6 |
|
|
32 |
180 |
85 |
236 |
216 |
85 |
7 |
115 |
83 |
64 |
15 |
15 |
6 |
M14 |
100 |
9 |
9 |
7.0 |
6.9 |
|
|
40 |
200 |
90 |
260 |
236 |
90 |
8 |
125 |
93 |
74 |
15 |
16 |
6 |
M14 |
120 |
11 |
11 |
9.2 |
8.5 |
|
|
50 |
230 |
95 |
288 |
258 |
95 |
8 |
135 |
103 |
84 |
15 |
16 |
6 |
M14 |
140 |
12 |
14 |
11.9 |
11.3 |
|
Chart 2 Fundamental dimensions of type AS and BS:
|
PN Mpa |
DN |
Construction dimension |
Thickness |
flange |
Bolt |
Hand wheel |
Lift range |
Weight/kg |
|||||||||||
|
L |
H |
H1 |
|||||||||||||||||
|
AS |
BS |
A |
BS |
BS |
δ |
D |
D1 |
D2 |
d0 |
b |
n |
Th. |
Do |
S |
m |
AS |
BS |
||
|
0.6 |
50 |
230 |
125 |
288 |
258 |
125 |
8 |
140 |
110 |
90 |
14 |
16 |
4 |
M12 |
140 |
12 |
14 |
12.2 |
12.2 |
|
65 |
290 |
145 |
310 |
277 |
145 |
9 |
160 |
130 |
110 |
14 |
16 |
4 |
M12 |
140 |
12 |
18 |
19.2 |
17.7 |
|
|
80 |
310 |
155 |
345 |
304 |
155 |
9 |
190 |
150 |
128 |
18 |
18 |
4 |
M16 |
160 |
14 |
24 |
23.8 |
21.7 |
|
|
100 |
350 |
175 |
374 |
325 |
175 |
10 |
210 |
170 |
148 |
18 |
18 |
4 |
M16 |
180 |
14 |
35 |
34.5 |
32.3 |
|
|
125 |
400 |
200 |
426 |
366 |
200 |
10 |
240 |
200 |
178 |
18 |
20 |
8 |
M16 |
200 |
17 |
44 |
42.5 |
42.8 |
|
|
150 |
480 |
225 |
482 |
410 |
225 |
11 |
265 |
225 |
202 |
18 |
20 |
8 |
M16 |
200 |
17 |
57 |
58.7 |
55.8 |
|
|
175 |
540 |
225 |
557 |
489 |
225 |
11 |
295 |
255 |
232 |
18 |
22 |
8 |
M16 |
200 |
17 |
60 |
76.8 |
70.3 |
|
|
200 |
600 |
275 |
621 |
549 |
275 |
11 |
320 |
280 |
258 |
18 |
22 |
8 |
M16 |
280 |
24 |
68 |
102 |
95.6 |
|
|
250 |
730 |
325 |
721 |
623 |
325 |
13 |
375 |
335 |
312 |
18 |
24 |
12 |
M16 |
360 |
27 |
80 |
158 |
151 |
|
|
300 |
850 |
375 |
794 |
691 |
375 |
13 |
440 |
395 |
365 |
22 |
24 |
12 |
M20 |
450 |
32 |
100 |
218 |
207 |
|
|
1 |
65 |
290 |
145 |
310 |
277 |
145 |
9 |
185 |
145 |
122 |
18 |
20 |
4 |
M16 |
140 |
12 |
18 |
21.6 |
20.1 |
|
80 |
310 |
155 |
345 |
304 |
155 |
9 |
200 |
160 |
133 |
18 |
22 |
8 |
M16 |
160 |
14 |
24 |
26 |
23.9 |
|
|
100 |
350 |
175 |
374 |
325 |
175 |
10 |
220 |
180 |
158 |
18 |
24 |
8 |
M16 |
180 |
14 |
35 |
35 |
32.8 |
|
|
125 |
400 |
200 |
426 |
366 |
200 |
10 |
250 |
210 |
184 |
18 |
26 |
8 |
M16 |
200 |
17 |
44 |
44.3 |
44.6 |
|
