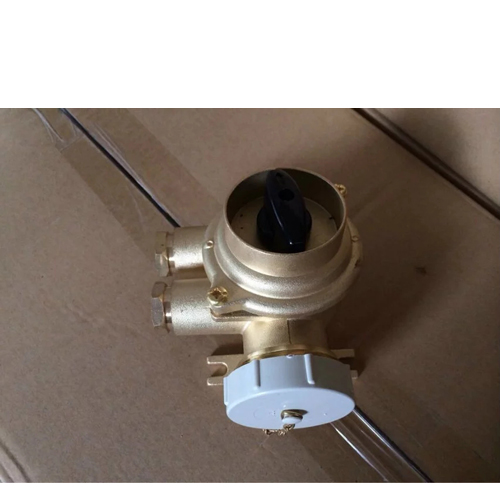

Marine brass socket with switch
More details of product, welcome to contact kevin@kingseamarine.com.
Chracteristic:
1. Used for connecting cutting on or off the appliancete circuit with AC or DC low-voltage.
2. The single pole of plug pulled out should be not less than 4N.
3. The temperature rise of conductive part should don't exceed 40K
4. The metal shell should have reliable earthing device
5. The screw of cover plate is M6 locking screw.
Parameters:
| Voltage | 24V | 125V | 250V | 500V | 500V | |
| Plug pin diagram |
|
|
|
|
|
|
|
Code | 1144 | ||||
| General cable type | CZKH101-1 | CZKH101-2 | CZKH101-3 | CZKH101-4 | CZKH101-5 | |
| Shield cable type | CZKH111-1 | CZKH111-2 | CZKH111-3 | CZKH111-4 | CZKH111-5 | |
|
Code | 1144/R | ||||
| General cable type | CZKH109-1 | CZKH109-2 | CZKH109-3 | CZKH109-4 | CZKH109-5 | |
| Shield cable type | CZKH119-1 | CZKH119-2 | CZKH119-3 | CZKH119-4 | CZKH119-5 | |
|
Code | 1144/D | ||||
| General cable type | CZKH201-1 | CZKH201-2 | CZKH201-3 | CZKH201-4 | CZKH201-5 | |
| Shield cable type | CZKH211-1 | CZKH211-2 | CZKH211-3 | CZKH211-4 | CZKH211-5 | |
|
Code | 1144/2 | ||||
| General cable type | CZKH202-1 | CZKH202-2 | CZKH202-3 | CZKH202-4 | CZKH202-5 | |
| Shield cable type | CZKH212-1 | CZKH212-2 | CZKH212-3 | CZKH212-4 | CZKH212-5 | |
|
Code | 1144/2/R | ||||
| General cable type | CZKH209-1 | CZKH209-2 | CZKH209-3 | CZKH209-4 | CZKH209-5 | |
| Shield cable type | CZKH219-1 | CZKH219-2 | CZKH219-3 | CZKH219-4 | CZKH219-5 | |
