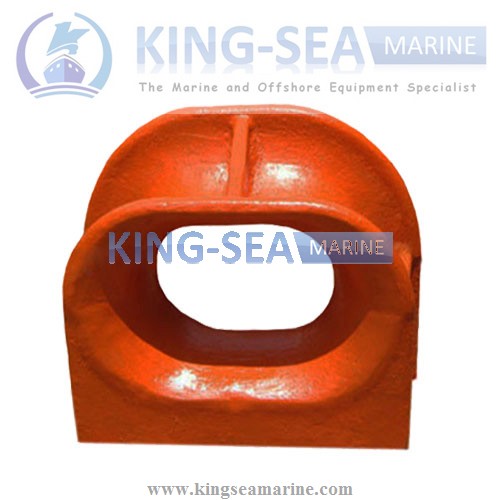

Type U.S. Panama Chock
- Material: Cast Steel ZG200-400,ZG230-450,Cast Iron or other request.
- ABS,CCS,BV,DNV,LR,GL,Mill certificate etc. available.
- Paint: Grey Epoxy Primer, Black Bitumen Paint or other options.
- Packing: Iron shelf or as per your request.
- Delivery Time: 15 to 25 days. We can advance it if you need it urgent.
Share this:
Type U.S. Panama Chock:
|
NOMINAL DIA. (mm)
|
MODEL NO. |
SIZE(mm) |
WEIGHT (kg) |
||||||
|
A |
B |
C |
D |
F |
G |
H |
|||
|
150 x 300 |
S-1097 |
558 |
165 |
330 |
61 |
178 |
20 |
76 |
71 |
|
180 x 360 |
S-1098 |
610 |
187 |
374 |
68 |
196 |
22 |
89 |
93 |
|
200 x 400 |
S-1105 |
626 |
257 |
414 |
80 |
242 |
25 |
101 |
152 |
|
230 x 460 |
S-1106 |
762 |
235 |
470 |
83 |
260 |
28 |
114 |
180 |
|
250 x 300 |
S-1101 |
812 |
257 |
514 |
90 |
260 |
30 |
127 |
225 |
We can manufacture marine chocks in a wide variety of sizes, standards and types, also can customized the chock according to your drawing. As a reliable marine equipment supplier, we have our own casting factory, ensure our product have reliable quality with competitive price.
King-Sea Marine offer roller chock and mooring chock. Based CB/T38-1999 standard, our cast roller chock has two rollers type and three rollers type. Mooring chock products mainly include: Panama chock (AC), Panama chock (BC), U.S panama chock, DIN81915 Mooring chock, JIS F 2005-1975 Closed mooring chock, JIS F 2007-1976 Mooring chock, Spain chock, JIS F 2030-1987 Single point mooring chock, EU mooring chock etc.
Main products of marine chocks:
1. Roller Chock
Three Roller Chock
Double Roller Chock
2. Mooring Chock
Open Chock JIS F-2006 Type FC, SC
Bulwark Mounted Mooring Chock JIS F-2007-1976 Type A
Bulwark Mounted Mooring Chock JIS F-2007-1976 Type B
Panama Chock---Bulwark Mounted Chock EU Type
Panama Chock---Bulwark Mounted Chock DIN81915-1998 Type A
Panama Chock---Bulwark Mounted Chock JIS F-2017-1982 Type BC
Panama Chock---Deck Mounted Chock JIS F-2005-1975(Mooring Closed Chock)
Panama Chock---Deck Mounted Chock JIS F-2017-1982 Type AC
Panama Chock---Deck Mounted Chock DIN81915-1998 Type C
Panama Chock---Deck Mounted Chock EU Type
Deck Mounted Chock NS2587
Deck Mounted Chock NS2588
Deck Mounted Chock NS2589
Deck Mounted Chock NS2590
Single Point Mooring Pipe JIS F 2030-1978 Type A
Single Point Mooring Pipe JIS F 2030-1978 Type B
CB34-76 C Type Mooring Chock
CB34-76 A Type Mooring Chock
