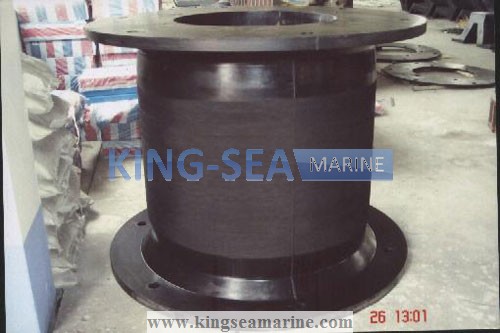

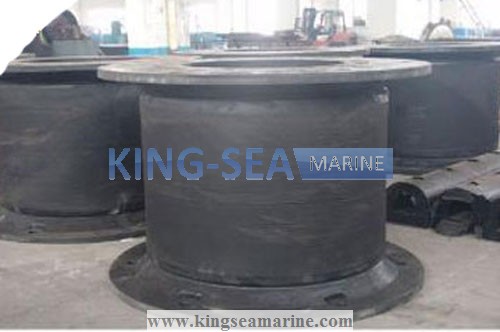

Super Drum Type Dock Rubber Fender
1.High E/R.H (energy absorption/reaction.product height)
2.More Reasonable Structure
3.Super Drum Type / YGCH Super Cell Type Rubber Fender has the same installation bolt pitch and bolt with the general rubber fender
4.Minor affection in angular berthing
Share this:
|

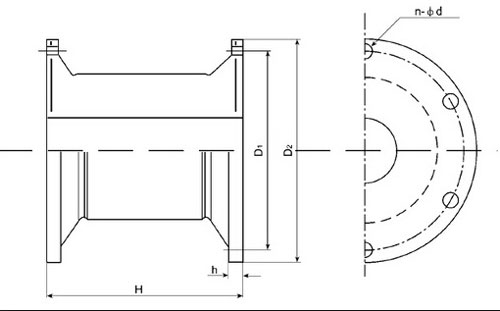

Type(mm) |
H |
h |
D1 |
D2 |
n-d |
MD |
h1 |
L |
|
YGCH400 |
400 |
25 |
550 |
650 |
4-30 |
22 |
10 |
270 |
|
YGCH500 |
500 |
25 |
550 |
650 |
4-32 |
24 |
12 |
300 |
|
YGCH630 |
630 |
30 |
700 |
840 |
4-39 |
30 |
14 |
330 |
|
YGCH800 |
800 |
30 |
900 |
1050 |
6-40 |
32 |
14 |
360 |
|
YGCH1000 |
1000 |
35 |
1100 |
1300 |
6-47 |
39 |
18 |
430 |
|
YGCH1150 |
1150 |
40 |
1300 |
1500 |
6-50 |
42 |
22 |
500 |
|
YGCH1250 |
1250 |
45 |
1450 |
1650 |
6-53 |
45 |
22 |
500 |
|
YGCH1450 |
1450 |
47 |
1650 |
1850 |
6-61 |
52 |
26 |
570 |
|
YGCH1600 |
1600 |
50 |
1800 |
2000 |
8-61 |
52 |
28 |
570 |
|
YGCH1700 |
1700 |
55 |
1900 |
2100 |
8-66 |
56 |
30 |
620 |
|
YGCH2000 |
2000 |
55 |
2000 |
2200 |
8-74 |
64 |
32 |
700 |
|
YGCH2250 |
2250 |
60 |
2300 |
2550 |
10-74 |
64 |
36 |
700 |
|
YGCH2500 |
2500 |
70 |
2700 |
2950 |
10-74 |
64 |
38 |
700 |
|
YGCH3000 |
3000 |
75 |
3150 |
3350 |
12-90 |
76 |
40 |
800 |
|
Accessories: Pre-built in U ring, Pre-built-in Bolt& Nut, Chains (Including tensile chain,weight chain&shear chain), Front Panel, Face Pad, Connector, Buffer." |
||||||||
