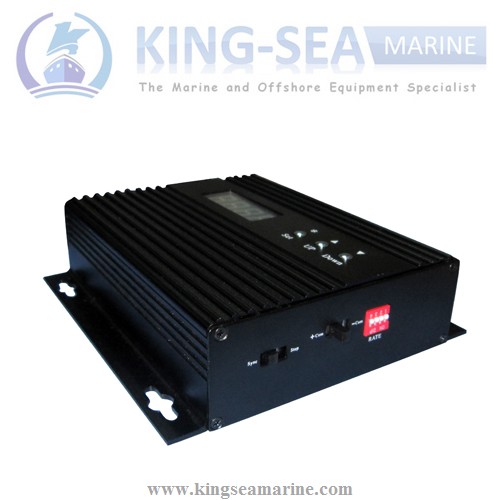

Marine GPS AIS Transponder
Blackbox Automatic Identification System (AIS) Transponder (Transmitter and Receiver) with AIS SART
Displays:
Features: – Full compliance with Class B AIS and AIS SART standards Wide operating voltage from 10 to 35VDC One touch AIS SART button to send rescue signal in case of emergency to all vessels nearby c Can work with Onwa AIS encrypted protocol to pr…
Share this:
VHF TRANSCEIVER |
|
| 1. Frequency | 156.025 to 162.025 MHz in 25KHz steps |
| 2. Output power | 33dBm ± 1.5 dB |
| 3. Channel bandwidth | 25KHz |
| 4. Modulation modes | 25KHz GMSK / AFSK |
| 5. Bit rate | 9600 b/s GMSK & 1200 b/s FSK |
| 6. RX sensitivity | <-107dBm at 20% packet error rate |
PHYSICAL |
|
| 1. Dimension | 207mm (length) x 155.8mm (Width) x 50mm (Height) |
| 2. Weight | 0.8kg |
POWER |
|
| 1. Input | 10 ~ 35 VDC |
| 2. Power consumption | 0.35A nominal , 2A peak |
ENVIRONMENT |
|
| 1. Temperature |
Display unit: -25 degrees Celsius to +55 degrees Celsius Antenna unit: -25 degrees Celsius to +70 degrees Celsius |
Electrical Interface |
RS232 38.4kbaud bi-directional |
