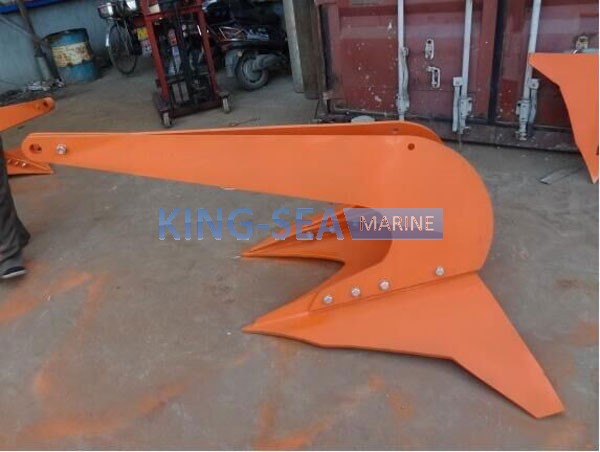

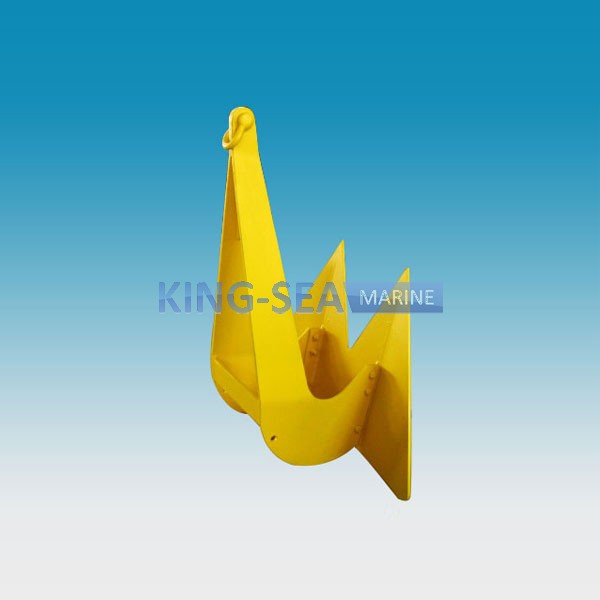

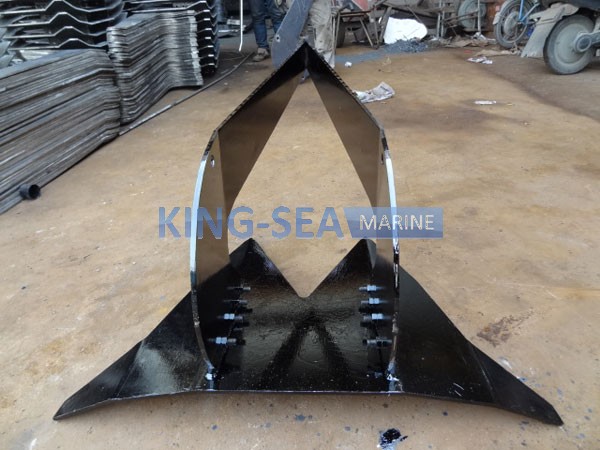

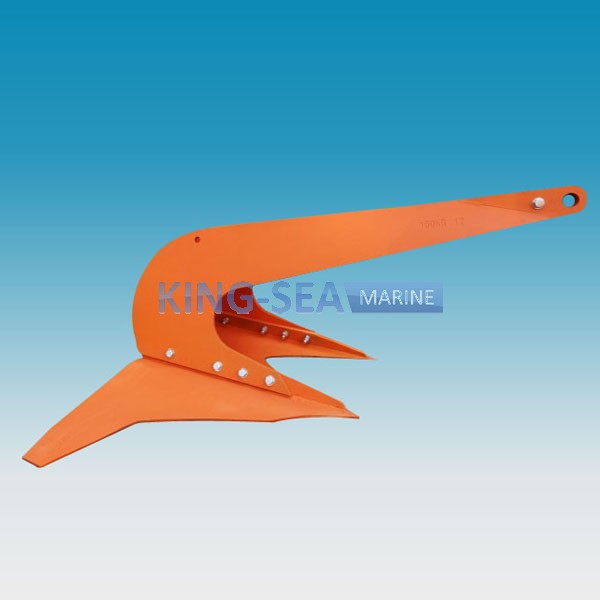

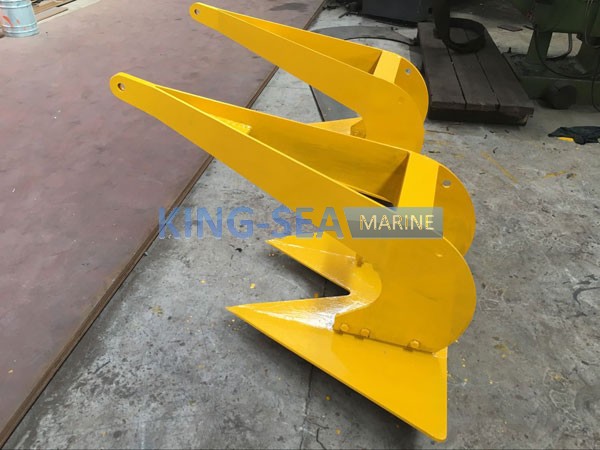

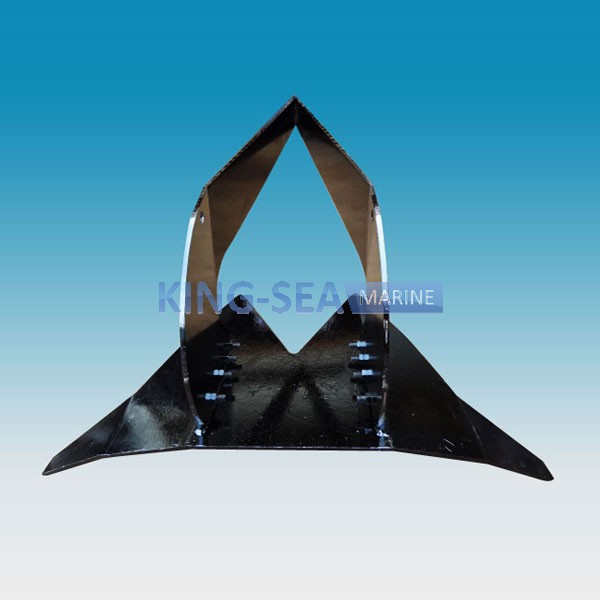

Marine Aquaculture HHP Anchor
- Type: High Holding Power Anchor;
- Material: Steel;
- Surface Treatment: Black Bitumen Paint or Hot Dip Galvanized;
- Nominal Weight:200-20000kg(Customized);
- Color: Black, Yellow, Orange, Blue etc.
Share this:
|
Weight (kg) |
Holding Power (tonnes) |
||
|
Sand |
Medium Clay |
Silt |
|
|
10 |
2.39 |
1.85 |
1.34 |
|
25 |
4.95 |
3.83 |
2.77 |
|
50 |
8.59 |
6.65 |
4.80 |
|
75 |
12.03 |
9.09 |
6.57 |
|
100 |
14.91 |
11.54 |
8.34 |
|
150 |
20.58 |
15.93 |
11.51 |
|
175 |
23.26 |
18.01 |
13.01 |
|
250 |
30.89 |
23.92 |
17.27 |
|
375 |
42.64 |
33.01 |
23.84 |
|
500 |
53.60 |
41.50 |
29.97 |
|
750 |
73.99 |
57.28 |
41.37 |
|
1000 |
93.00 |
72.00 |
52.00 |
|
1500 |
128.37 |
99.39 |
71.78 |
|
2000 |
161.36 |
124.93 |
90.22 |
|
3000 |
222.74 |
172.44 |
124.54 |
|
4000 |
279.98 |
216.76 |
156.55 |
|
5000 |
334.32 |
258.83 |
186.93 |
|

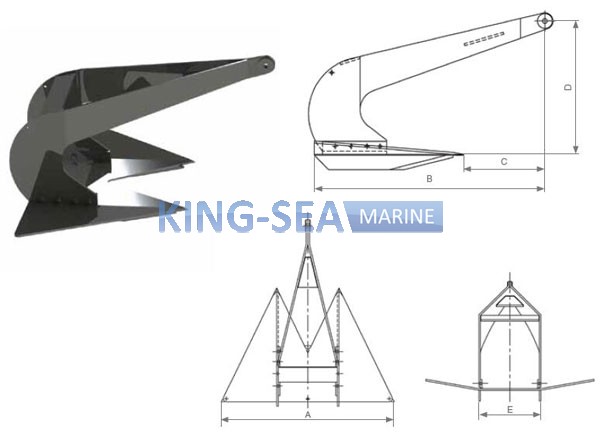

Weight (kg) |
Dimensions (mm) |
||||||
|
Color |
A |
B |
C |
D |
E |
F |
|
|
50 |
Green |
1013 |
1023 |
347 |
598 |
368 |
54 |
|
75 |
Yellow |
1060 |
1070 |
363 |
625 |
385 |
58 |
|
100 |
Blue |
1171 |
1182 |
401 |
691 |
426 |
64 |
|
150 |
Green |
1258 |
1271 |
432 |
742 |
458 |
69 |
|
250 |
Yellow |
1515 |
1530 |
519 |
895 |
556 |
83 |
|
375 |
Blue |
1748 |
1765 |
599 |
1031 |
635 |
96 |
|
500 |
Green |
2024 |
2045 |
694 |
1190 |
736 |
111 |
|
750 |
Yellow |
2222 |
2243 |
761 |
1311 |
808 |
122 |
|
1000 |
Yellow |
2491 |
2516 |
854 |
1470 |
905 |
136 |
|
2000 |
Yellow |
3078 |
3109 |
1055 |
1817 |
1119 |
168 |
|
3000 |
Yellow |
3638 |
3719 |
1312 |
2160 |
1311 |
197 |
|
5000 |
Yellow |
4248 |
4291 |
1456 |
2504 |
1544 |
232 |
