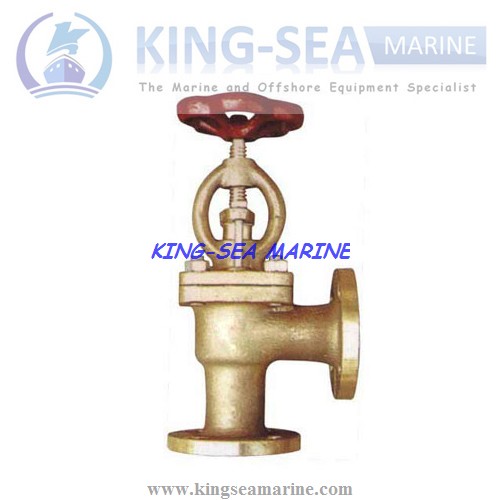

JIS F7352 5K Marine Bronze Flanged Angles Stop Check Valves
JIS F7352 5K Marine Bronze Flanged Angles Stop Check Valves
Description:
1.Standard: JIS F7352 2.Size: DN15~DN40
3.Material: Bronze
4.Pressure: 5Kgf/cm2
Share this:
Description:
1.Standard: JIS F7352
2.Size: DN15~DN40
3.Material: Bronze
4.Pressure: 5Kgf/cm2
1. The flow path is simple, small dead zone and vortex area, scouring action by means of the media itself, which can effectively prevent the media from clogging. And has good self-cleaning properties.
2.Small flow resistance, flow coefficient smaller than the single seat valve, equivalent with the flow coefficient of double-seat valve.
It's suitable for the case of high viscosity fluid containing suspended particulate matter,or to request a place at right angles to the pipe. Its flow is generally bottom into the side.
Specifications about Marine Bronze Screw-down Check Angle Valve/ JIS Marine Valve (JIS F7352)
|
Rating
|
SIZE |
FACE TO FACE |
FLANGE |
HEIGHT |
HANDLE DIA |
WEIGHT |
||
|
(mm) |
(mm) |
DIA |
PCD |
BOLT HOLE |
(mm) |
(mm) |
(Kg) |
|
|
5kgf/cm2
(F7352) |
15 |
50 |
80 |
60 |
4-12 |
120 |
80 |
1.92 |
|
20 |
60 |
85 |
65 |
4-12 |
130 |
100 |
2.64 |
|
|
25 |
65 |
95 |
75 |
1-12 |
145 |
125 |
3.3 |
|
|
32 |
80 |
115 |
90 |
4-12 |
150 |
125 |
4.63 |
|
|
40 |
85 |
120 |
95 |
4-15 |
165 |
140 |
5.81 |
|
|
16kgf/cm2
(F7410)
|
15 |
70 |
95 |
70 |
4-15 |
120 |
80 |
2.67 |
|
20 |
75 |
100 |
75 |
4-15 |
130 |
100 |
3.56 |
|
|
25 |
85 |
125 |
90 |
4-19 |
145 |
125 |
5.02 |
|
|
32 |
95 |
135 |
100 |
4-19 |
150 |
125 |
6.58 |
|
|
40 |
100 |
140 |
105 |
4-19 |
165 |
140 |
7.95 |
|
