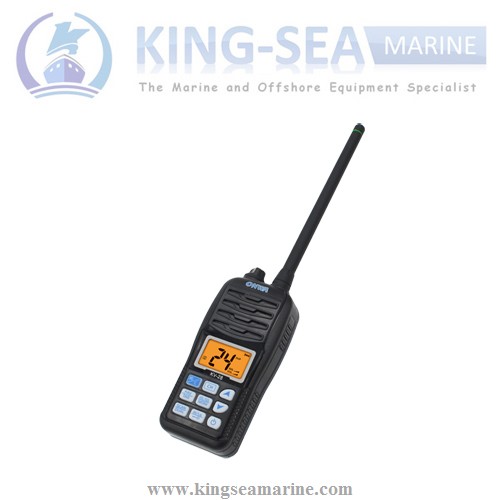

Handheld Marine VHF Radio Transceiver
VHF Marine Transceiver IP67 Waterproof (1-meter depth for 30 minutes) Floats and Flashes Vibration Water Draining Function Large LCD Display Dual/ Tri-Watch
Share this:
GENERAL |
|
| Frequency Range |
TX: 156.025 – 157.425MHz RX: 156.000 – 163.425MHz |
| Type of Emission | FM (16K0G3E) |
| Battery Pack | 15000 mAh Li-ion (DC3.7V) |
| Frequency Stability | ±10 PPM |
| Operating Temperature Range | -15°C~+55°C |
| Antenna Impedance | 50 |
| Dimension (HxWxD) | 140mmx65mmx41mm |
| Weight | 247g |
TRANSMITTER |
|
| Output Power | 5W/1W |
| Maximum Frequency Deviation | ±5kHz |
| Spurious Emission | 0.25uW |
| Adjacent Channel Power | ≥ 70 dB |
| Audio Harmonic Distortion | ≤ 10% |
| Current Drain |
≤ 1.5A (High Power) ≤ 0.9A (Low Power) ≤ 0.35A (Max Audio Input) |
RECEIVER |
|
| Receiver Sensitivity | ≤ 0.22 µ V |
| Squelch Sensitivity | ≤ 0.22 µ V |
| HUM Noise | ≥ 40 dB |
| Adjacent Channel Sensitivity | ≥ 70 dB |
| Spurious Response | ≥ 70 dB |
| Intermodulation | ≥ 68 dB |
| Audio Output Power | ≥ 0.6 W(10%) |
More details of product, welcome to contact kevin@kingseamarine.com.
