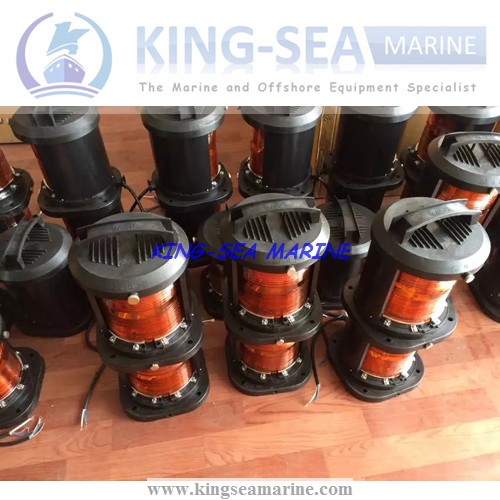

Double-deck Marine Solar Navigation Signal Light
Double-deck navigation signal light
The scope of application:
Applied to the ships with the length 50m or above 50m as lamp signal liaison when night navigation. Product Characteristics:
1.It is convenient to install and replace the bulb, there are automatic leakage holes at the bottom. 2.The shell is made of steel, the surface is painted the speci…
Share this:
Adopt standards:
1.Conform to international regulation for preventing collision at sea, 1972 and grade entry norms
for steel ships.2.Conform to standard of marine electric signal light's technical condition
GB/T 3028-2012.
|
Voltage |
24V |
110V |
220V |
|
Power |
2x60W |
2x65W |
2x65W |
|
Lamp holder |
B22d |
||
|
Protection class |
IP55 |
||
|
Cable outside Diameter |
Ø14-Ø16 |
||
Parameters:
|
Name |
Model |
Visible |
Level arc |
Color |
Weight |
|
starboard light |
CXH1-10B |
3n.m |
112.5° |
Green |
9.0kg |
|
port light |
CXH2-10B |
3n.m |
112.5° |
Red |
9.0kg |
|
masthead light |
CXH3-10B |
6n.m |
225° |
white |
9.0kg |
|
stern light |
CXH4-10B |
3n.m |
135° |
White/Yellow |
9.0kg |
|
all-round light |
CXH6-10B |
3n.m |
360° |
Red/Green/white |
9.0kg |
More details of product, welcome to contact kevin@kingseamarine.com.
