DO Type Rubber Fender
1. Suitable reaction force ,with higher energy absorption than cylindrical rubber fenders
2. Easy for installation
3. Applicable for frame dock and ships due to the smaller bottom width.
Share this:
increase the installation stability, it also can be integrated into other fender system to reach the purpose of protecting the ships and docks.
|
Item |
DO100 |
DO150 |
DO200 |
DO250 |
DO300 |
DO350 |
DO400 |
DO500 |
|
H |
90 |
150 |
200 |
250 |
300 |
350 |
400 |
500 |
|
B |
100 |
150 |
200 |
250 |
300 |
350 |
400 |
500 |
|
D |
45 |
55 |
55 |
65 |
65 |
85 |
85 |
97 |
|
d |
25 |
27 |
30 |
32 |
36 |
40 |
42 |
45 |
|
h |
30 |
50 |
35 |
62.5 |
75 |
87.5 |
100 |
125 |
|
W |
50 |
80 |
100 |
125 |
150 |
175 |
200 |
250 |
|
Bolt Size |
M22 |
M24 |
M26 |
M27 |
M30 |
M30 |
M38 |
M42 |
|
End distance |
100-150 |
100-150 |
100-150 |
100-150 |
100-150 |
100-150 |
100-150 |
100-150 |
|
Bolt Pitch |
350-440 |
350-440 |
325-600 |
325-450 |
325-600 |
350-600 |
350-600 |
400-620 |
|
Max.length(mm) |
2000 |
2000 |
2000 |
3000 |
3000 |
3000 |
3000 |
3000 |
|
Reaction Force |
54.91 |
83.2 |
105.7 |
132.2 |
158.4 |
184.8 |
211.2 |
316.8 |
|
Energy Absorption |
0.91 |
3.5 |
4.61 |
0.64 |
0.95 |
1.12 |
1.61 |
3.6 |
|
Deflection |
40% |
|||||||
|
Weight(kg/m) |
10 |
22 |
38 |
59 |
84 |
115 |
150 |
234 |
|

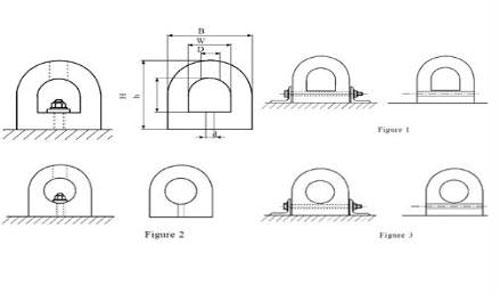

1.This type of fender also can be installed as shown in figure1 |
||||||||
|
2.The round holes is also avaiable as show in figure2&3 |
||||||||
|
3.All the bolts in the same diameter |
||||||||
|
4.Production in accordance with stand |
||||||||
