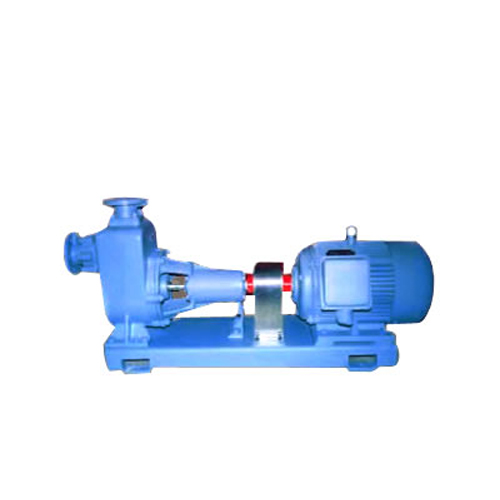

CWZ Marine Horizontal Self-priming Centrifugal Water/Oil Pump are suitable for cooling water, fire,blige, ballast,municipal water and drainage.
Main Character:
1.Beautiful shape and fine structure,reliable performance.
2.With strong capacity of self priming, no need to equip with flap valve.
3.Non-clog, and with powerful capacity of passing big solid..
4.The hole can make sure that stronger sewage can be cleaned quickly when pump is jammed.
Model Explanation:
For the Model 32CWZ-5
32 stand for pump inlet nominal diameter mm
CWZ stand for marine-type horizontal self-priming certrifugal pump
5 stand for Intergral value of 1/10 of the specific speed of pump
Main Technical Parameter:
(380V 50HZ)
| MODEL | CAPACITY | HEAD | RPM | NPSH | effecience | power | Electric Motor model | overall dimensions | ||
| m3/h | m | m | % | kw | mm | |||||
| 50CWZ-8 | 21 | 21 | 2870 | 4 | 51 | 3 | Y100L-2H(B3) | 935 X 297 X 560 | ||
| 50CWZ-6 | 30 | 2890 | 56 | 4 | Y112M-2H(B3) | 953 X 252 X 628 | ||||
| 50CWZ-5 | 42 | 2900 | 5 | 52 | 5.5 | Y132S 1-2H(B3) | 1057 X 363 X 580 | |||
| 65CWZ-11 | 36 | 21 | 2890 | 4 | 64 | 4 | Y112M-2H(B3) | 1015 X 250 X 538 | ||
| 65CWZ-8 | 30 | 2900 | 61 | 5.5 | Y132S 1-2H(B3) | 1066 X 256 X 608 | ||||
| 65CWZ-6 | 42 | 2930 | 5 | 57 | 11 | Y160M1-2H(B3) | 930 X 262 X 562 | |||
| 65CWZ-5 | 60 | 2930 | 52 | 15 | Y160M2-2H(B3) | 1288 X 406 X 600 | ||||
| 80CWZ-14 | 60 | 21 | 2900 | 4 | 67 | 7.5 | Y132S 2-2H(B3) | 1181 X 350 X 645 | ||
| 80CWZ-11 | 30 | 2930 | 65 | 11 | Y160M1-2H(B3) | 1352 X 423 X 655 | ||||
| 80CWZ-8 | 42 | 2930 | 5 | 55 | 15 | Y160M2-2H(B3) | 1384 X 430 X 655 | |||
| 80CWZ-6 | 60 | 2940 | 54 | 22 | Y180M-2H(B3) | 1424 X 460 X 680 | ||||
| 80CWZ-5.5 | 75 | 2950 | 56 | 30 | Y200L1-2H(B3) | 1533 X 555 X 698 | ||||
| 100CWZ-18 | 100 | 21 | 2930 | 5 | 68 | 11 | Y160M1-2H(B3) | 1415 X 430 X 805 | ||
| 1OOCWZ-14 | 30 | 2930 | 65 | 15 | Y160M2-2H(B3) | 1415 X 430 X 805 | ||||
| 100CWZ-11 | 42 | 2940 | 58 | 22 | Y180M-2H(B3) | 1497 X 450 X 825 | ||||
| 100CWZ-8 | 60 | 2950 | 55 | 30 | Y200L1-2H(B3) | 1635 X 555 X 865 | ||||
| 100CWZ-6 | 85 | 2970 | 50 | 45 | Y225M-2H(B3) | 1668 X 586 X 920 | ||||
(440v 60hz)
| MODEL | CAPACITY | HEAD | RPM | NPSH | power | Electric Motor model | |
| m3/h | m | m | kw | ||||
| 50CWZ1-8 | 25.2 | 30.2 | 3520 | 4 | 5.5 | Y132S 1-2H(B3) | |
| 50CWZ1-6 | 43.2 | 3520 | 7.5 | Y132S 2-2H(B3) | |||
| 50CWZ1-5 | 60.5 | 3540 | 11 | Y160M1-2H(B3) | |||
| 65CWZ1-11 | 43.2 | 30.2 | 3520 | 4 | 7.5 | Y132S 2-2H(B3) | |
| 65CWZ1-8 | 43.2 | 3540 | 11 | Y160M1-2H(B3) | |||
| 65CWZ1-6 | 60.5 | 3540 | 5 | 15 | Y160M2-2H(B3) | ||
| 65CWZ1-5 | 86.4 | 3550 | 22 | Y180M-2H(B3) | |||
| 80CWZ1-14 | 72 | 30.2 | 3540 | 4 | 11 | Y160M1-2H(B3) | |
| 80CWZ1-11 | 43.2 | 3540 | 15 | Y160M2-2H(B3) | |||
| 80CWZ1-8 | 60.5 | 3550 | 5 | 22 | Y180M-2H(B3) | ||
| 80CWZ1-6 | 86.4 | 3560 | 30 | Y200L1-2H(B3) | |||
| 80CWZ1-5.5 | 108 | 3570 | 45 | Y225M-2H(B3) | |||
| 100CWZ1-18 | 120 | 30.2 | 3540 | 5 | 15 | Y160M2-2H(B3) | |
| 1OOCWZ1-14 | 43.2 | 3550 | 20 | Y180M2-2H(B3) | |||
| 100CWZ1-11 | 60.5 | 3560 | 30 | Y200L1-2H(B3) | |||
| 100CWZ1-8 | 86.4 | 3570 | 45 | Y225M-2H(B3) | |||
| 100CWZ1-6 | 122.4 | 3580 | 75 | Y280S-2H(B3) | |||
