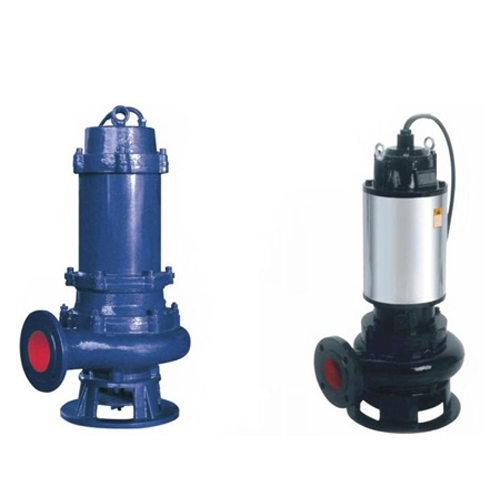

Marine Sea Water Pump :
This pump integrates widely acclaimed features such as small size, light weight, easy to move and installation, compact structure, high safety and reliablility ect. The pump is basically applicable to marine emergency survival system, and removal of accumulated water in the cabin.
CQX10-16-1.1S & CQX40-15-3 pumps must be submerged when running. The motor pump is not allowed to run under no-water state; For the others, their motors are allowed to conduct no-water running due to their patternsof cooling for motors, which are conducted by water flowing through the interlining of motor casing.
Model Explanation
For the Model CQX40-15-3
CQX stand for marine-type submersible motor pump
(W) stand for sewage discharge
40 stand for specific capacity of the pump (m3/h)
15 stand for the specific head of the pump (m)
4 stand for motor power (kw)
Main Technical parameter:
| Tpye | Capacity | Head | efficiency | power | rpm | Throughout max. |
| Q (m3/h) | H (m) | % | P (kw) | N (r/min) | mm | |
| CQX(W)10-10-1 | 10 | 10 | 44 | 1 | 2900 | 25 |
| CQX(W)15-7-1 | 15 | 7 | 47 | 1 | 25 | |
| CQX(W)10-15-15 | 10 | 15 | 44 | 1.5 | 25 | |
| CQX(W)15-10-10 | 15 | 10 | 47 | 1.5 | 25 | |
| CQX(W)25-8-1.5 | 25 | 8 | 51 | 1.5 | 25 | |
| CQX(W)15-20-2.2 | 15 | 20 | 47 | 2.2 | 40 | |
| CQX(W)25-14-2.2 | 25 | 14 | 50 | 2.2 | 40 | |
| CQX(W)40-10-2.2 | 40 | 10 | 54 | 2.2 | 40 | |
| CQX(W)20-22-3 | 20 | 22 | 49 | 3 | 40 | |
| CQX(W)30-16-3 | 30 | 16 | 52 | 3 | 40 | |
| CQX(W)40-12-3 | 40 | 12 | 54 | 3 | 40 | |
| CQX(W)20-25-4 | 20 | 25 | 49 | 4 | 40 | |
| CQX(W)30-18-4 | 30 | 18 | 52 | 4 | 40 | |
| CQX(W)40-15-4 | 40 | 15 | 54 | 4 | 40 | |
| CQX(W)60-13-4 | 60 | 13 | 57 | 4 | 40 | |
| CQX(W)25-30-5.5 | 25 | 30 | 52 | 5.5 | 1470 | 25 |
| CQX(W)30-21-5.5 | 30 | 21 | 52 | 5.5 | 50 | |
| CQX(W)45-18-5.5 | 45 | 18 | 55 | 5.5 | 50 | |
| CQX(W)65-15-5.5 | 65 | 15 | 45 | 5.5 | 50 | |
| CQX(W)70-14-5.5 | 70 | 14 | 58 | 5.5 | 50 | |
| CQX(W)100-8-5.5 | 100 | 8 | 60 | 5.5 | 50 | |
| CQX(W)20-40-7.5 | 20 | 40 | 51 | 7.5 | 2900 | 40 |
| CQX(W)45-30-7.5 | 45 | 30 | 52 | 7.5 | 1470 | 45 |
| CQX(W)50-27-7.5 | 50 | 27 | 55 | 7.5 | 45 | |
| CQX(W)70-20-7.5 | 70 | 20 | 58 | 7.5 | 45 | |
| CQX(W)100-13-7.5 | 100 | 13 | 60 | 7.5 | 50 | |
| CQX(W)150-8-7.5 | 150 | 8 | 62 | 7.5 | 50 | |
| CQX(W)45-32-11 | 45 | 32 | 55 | 11 | 50 | |
| CQX(W)70-22-11 | 70 | 22 | 58 | 11 | 50 | |
| CQX(W)100-16-11 | 100 | 16 | 59 | 11 | 50 | |
| CQX(W)150-10-11 | 150 | 10 | 61 | 11 | 50 | |
| CQX(W)70-32-15 | 70 | 32 | 58 | 15 | 50 | |
| CQX(W)100-22-15 | 100 | 22 | 59 | 15 | 50 | |
| CQX(W)250-13-15 | 250 | 13 | 65 | 15 | 50 | |
| CQX(W)150-17-15 | 150 | 17 | 62 | 15 | 50 | |
| CQX(W)150-20-45 | 150 | 20 | 65 | 15 | 970 | 50 |
Other Related Products:
Water Pump: Centrifugal Pump; Vortex Pump ; Jet Pump ; Bilge Pump
Sewage Pump: Submersible Sewage Pump; Sewage Crushing Pump
Fire Pump: Portable Fire Pump; Fixed Fire Pump ; Diesel Emergency Fire Pump
Oil Pump: Gear Oil Pump; Hot Oil Pump; Self-priming centrifugal oil pump
Valves: Butterfly Valve ; Globe Valve ; Gate Valve ; Check Valve ; Angle Valve
More details of product, welcome to contact kevin@kingseamarine.com.
